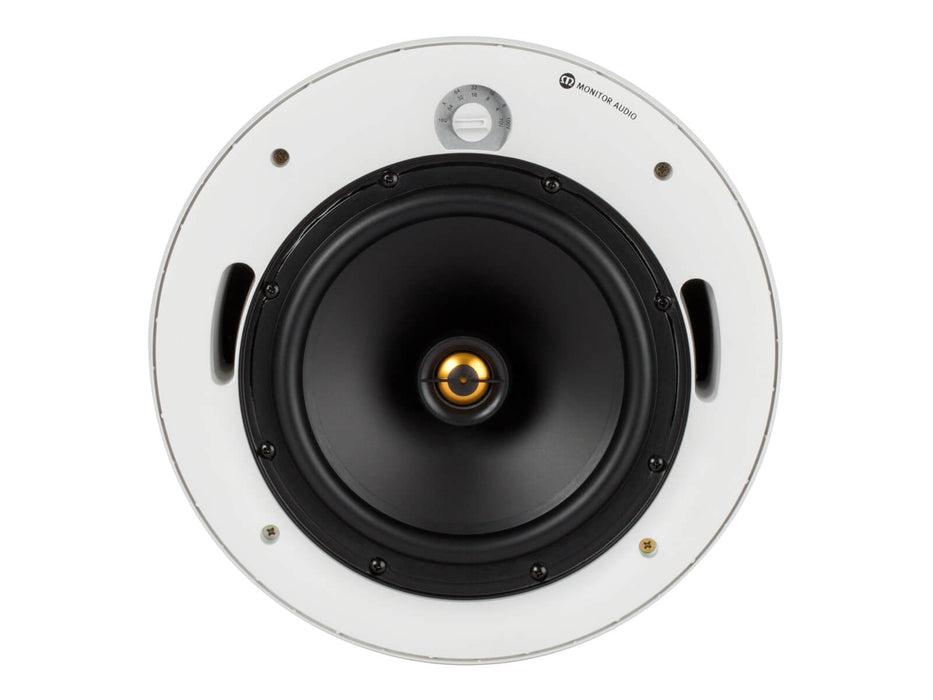

Monitor Audio Pro-80LV 70/100 V Input In Ceiling Speaker (Each)
Country of Origin:
Country of Origin:
Joining the Pro-65 and Pro-80 in the expanded PRO-IC range, the new professional Pro-80LV 70/100 V line speaker offers similarly stealthy but highly flexible system options for commercial installations.
1-year manufacturer's warranty
Delivers High Audio Quality with Excellent Speech Intelligibility
Reprising many of Monitor Audio’s most acclaimed hi-fi design configurations, its 8" MMP II bass driver and signature 1" Gold Dome tweeter deliver high audio quality with excellent speech intelligibility for public address and distributed music applications. The Pro-80LV features an internal matching transformer, providing a 70 V or 100 V input for powering multiple speakers on a single amplifier channel. A 16-ohm switch position offers the flexibility to wire one, two, three, or four speakers in parallel per channel. Power taps allow system designers to set maximum SPL in areas such as restrooms and foyers.
Optimum Blend of Design, Performance, and Value
Building regulations are satisfied by the Pro-80LV’s fireproof steel back box and secure anchor points while a plug-type connection block ensures easy and reliable system integration with a link-out option for ‘daisy chain’ wiring. Combining installation versatility with Monitor Audio’s robust build quality and hi-fi clarity, the slender new Pro-80LV offers the added advantage of timeless aesthetics for an optimum blend of design, performance, and value.
Frequency Response |
65 Hz – 25 kHz |
Nominal Impedance |
16Ω 70V (4,8, 16,32,64 W) 100V (8,16,32,64 W) power selection |
Sensitivity (1W@1M) |
87 dB |
Maximum SPL |
103.8 dBA |
Power Handling (RMS) |
40 W |
Recommended Amplifier Requirements |
10 — 40 W |
Drive Unit Complement |
8" MMP II cone bass-mid driver 1 x 25 mm (1") fabric soft dome tweeter |
Connection |
Screw type plug termination |
Overall Diameter (Including Grille) |
294 mm (119/16") |
Overall Depth (Including Grille) |
114 mm (41/2") |
Cut-Out Hole Diameter |
266 mm (101/2") |
Mounting Depth |
101.4 mm (4") |
Fixing Type |
4 position dog leg fixings |
Construction Material |
ABS (UL94 rated, RoHS2 Compliant) Painted steel grille, Steel rear enclosure |
Other |
Fire Rating: UL1480 & UL2043 |
Weight |
3.76 kg (8 lb 4 oz) |
