Projection System
|
DLP
|
|
Native Resolution
|
1080p (1920x1080)
|
|
Resolution Support
|
VGA(640 x 480) to WUXGA(1920 x 1200)
|
|
Brightness (ANSI lumens)
|
2000 ANSI lumens
|
|
Contrast Ratio
|
10000:1
|
|
Lens
|
F=2.59~2.87, f=16.88~21.88
|
|
Native Aspect Ratio
|
16:9 (5 aspect ratio selectable)
|
|
Throw Ratio
|
1.15~1.5
|
|
Projection Size
|
30" ~ 300"
|
|
Zoom Ratio
|
1.3x
|
|
Projection Offset
|
Vertical: 115% +-5%
|
|
Zoom Ratio
|
1.2x
|
|
Lens
|
F/# =2.42 - 2.62, f = 19.0 - 22.65 mm
|
|
Keystone Adjustment
|
1D, Vertical +/- 40 degrees
|
|
Projection Offset
|
107%±5%
|
|
Resolution support
|
VGA(640 x 480) to WUXGA(1920 x 1200)
|
|
Image Size
|
60''~ 300"
|
|
3D Compatibility
|
-
Frame Sequential: Up to 60Hz 720p
-
Frame Packing: Up to 24 Hz 1080p
-
Side by Side: Up to 24Hz 1080p
-
Top Bottom: Up to 60Hz 1080p
|
|
Horizontal Frequency
|
15K~102KHz
|
|
Vertical Scan Rate
|
23-120Hz
|
|
HDTV Compatibility
|
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
|
|
Video Compatibility
|
NTSC, PAL, SECAM, SDTV(480i/576i),
EDTV (480p/576p, HDTV (720p, 1080i/p 60Hz
|
|

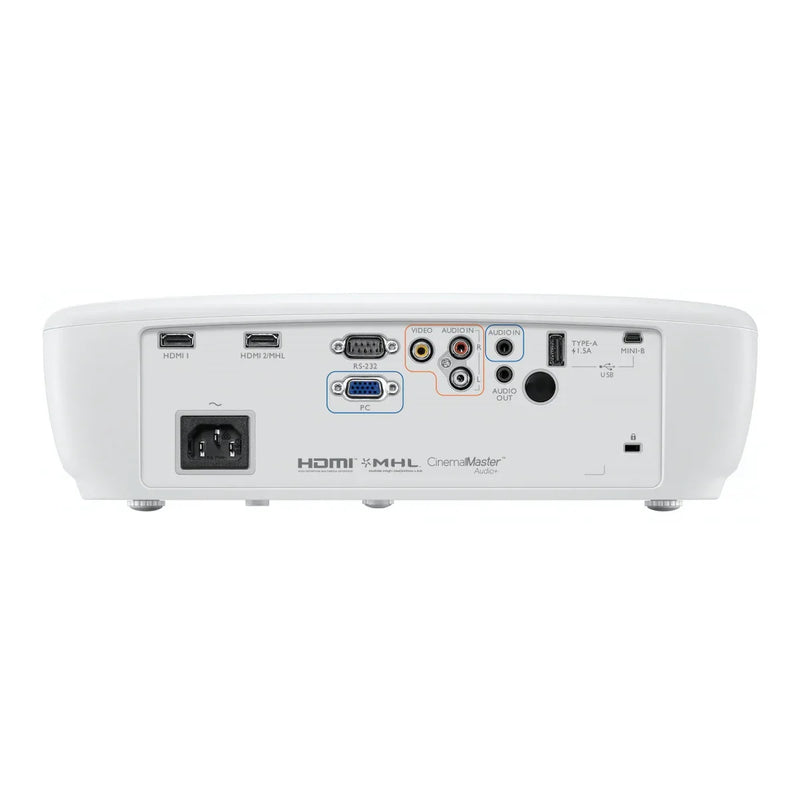

Interface
|
-
Computer in (D-sub 15pin) x1( integrate with component)
-
HDMI x2 (HDMI with MHL2.0 x1, HDMI x 1)
-
MHL x 1(HDMI with MHL2.0)
-
Monitor out No
-
Composite Video in (RCA) x 1
-
S-Video in No
-
Audio in (Mini Jack) x 1
-
Audio in (L/R) x1
-
Audio out (Mini Jack) x 1
-
Speaker 10Wx1+Maxx
-
USB (Type A) x 1
-
USB (Type mini B) x 1 ( service only)
-
RS232 (DB-9pin) x 1
-
IR Receiver x2 (Front and Rear)
|
|
Picture Modes
|
Bright / Vivid/ Cinema / Game/ Sport / User
|
|
DMD Type
|
DC3
|
|
Noise Level
|
34/29 dBA (Normal/Economic mode)
|
|
Standby Power Consumption
|
Automatic power off after 20 minutes without a display source.
|
|
Light Source
|
210W
|
|
Light Source Life*
|
3000/4500/6500 (hours) * Lamp life results will vary depending on environmental conditions and usage
|
|
Power Supply
|
AC 100 to 240 V, 50/60 Hz
|
|
Power consumption
|
270 W(Normal), 220 W(Eco), Standby <0.5W
|
|
Dimensions (W x H x D)
|
346.24 x 101.70 x 214.81 mm
|
|
Weight
|
2.75kg
|
|
Whats in the box
|
-
Remote Control w Battery
-
User Manual CD
-
QSG
-
Warranty Card (by region)
-
Power Cord (by region)
|
