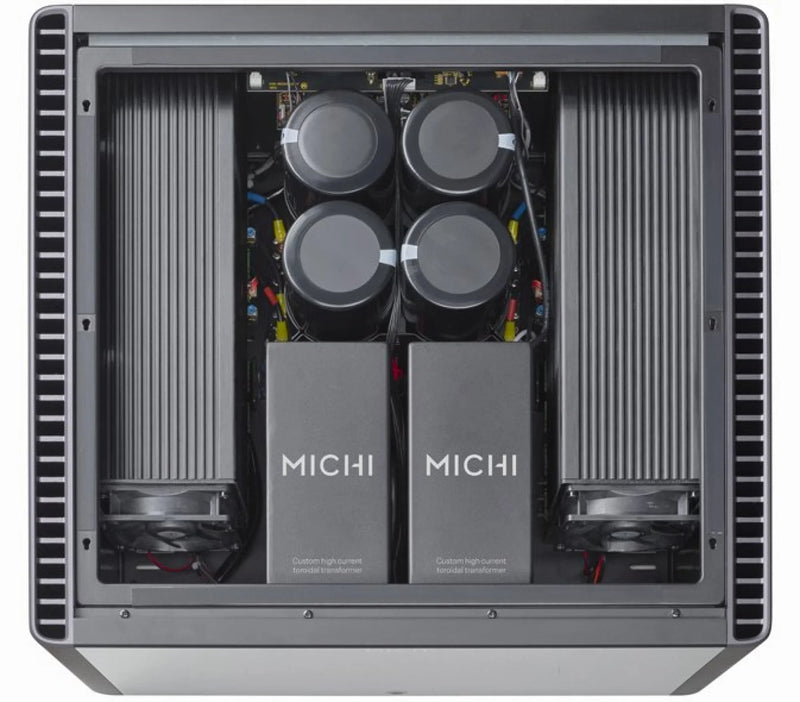

The Michi S5 is a dual-monoblock stereo power amplifier delivering 500 watts per channel into 8 ohms and over 800 watts per channel into 4 ohms. Each channel draws from its own custom-engineered, oversized, in-house manufactured 2,200 VA toroidal transformer, feeding a total of 188,000 microfarads of bulk storage capacitance split across four British-made capacitor banks.

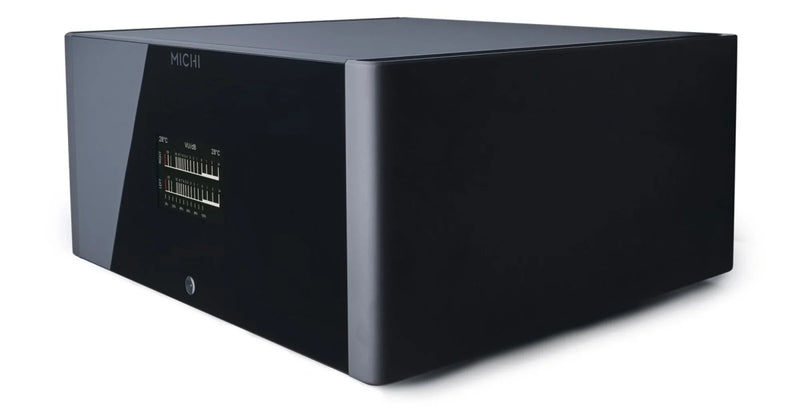

Thirty-two high-current output transistors and a damping factor of 350 give the S5 the reserve current and control needed for large, demanding loudspeakers. Balanced XLR and unbalanced RCA inputs are provided, and the elegant aluminium chassis carries a front-panel display consistent with the rest of the Michi range.
Key Features
- 500 watts per channel into 8 ohms, over 800 watts into 4 ohms
- Dual monoblock design with independent toroidal transformers per channel
- 188,000 microfarads of bulk storage capacitance
- 32 high-current output transistors
- Damping factor of 350 for firm loudspeaker control

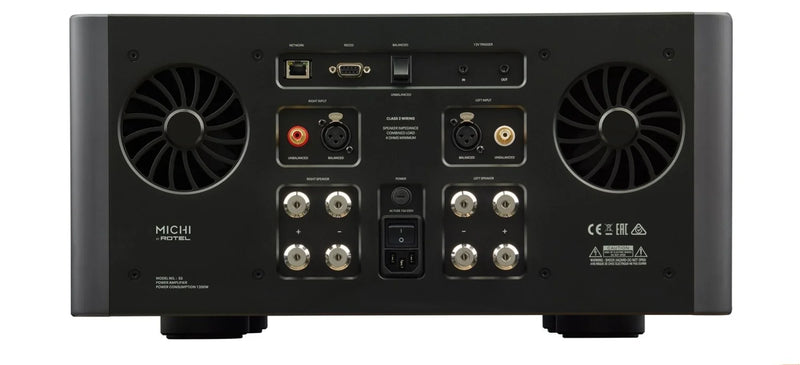

- Balanced XLR and unbalanced RCA inputs
- Signal to noise ratio of 120 dB
- Stable into loads down to 4 ohms

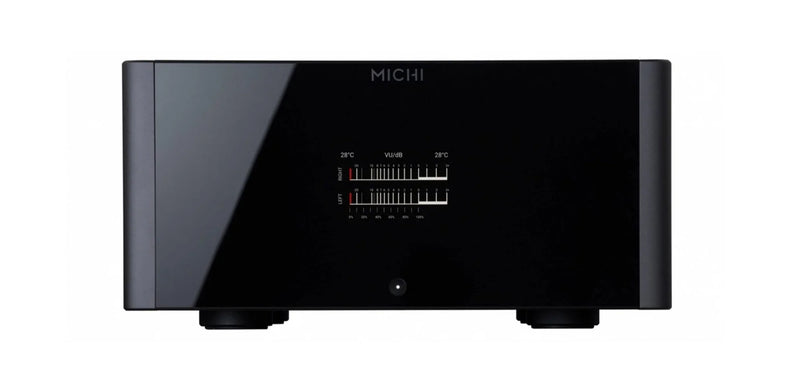

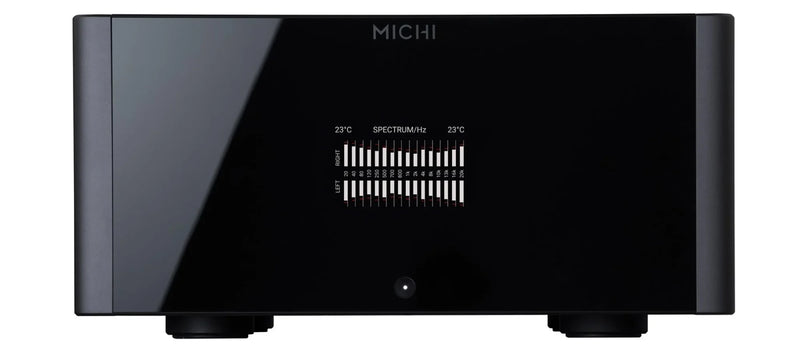

- Front-panel display matching the Michi range
- Supplied with a dedicated remote control
Warranty
This product comes with a 2-year manufacturer warranty.
Why Consider the Michi S5
The dual-monoblock construction is the point of the S5: each channel has its own transformer, its own capacitor bank and its own output stage, so demanding bass in one channel cannot draw down the supply feeding the other. At 500 watts into 8 ohms and nearly double that into 4 ohms, it is built for large rooms and loudspeakers that most amplifiers would struggle to control at volume.
Ideal For
- Large rooms with power-hungry floorstanding loudspeakers
- Pairing with the Michi P5 or Prestige P430 preamplifier
- Systems needing independent per-channel power reserves
- Loudspeakers with demanding, low-impedance bass sections
What's in the Box
- Michi S5 Stereo Power Amplifier
- Remote control
- Power cable
- Owner's manual
Technical Specifications
| Amplifier Performance |
| Power Output, 8 ohms |
500 W per channel |
| Power Output, 4 ohms |
800 W per channel |
| Total Harmonic Distortion |
Less than 0.008% |
| Intermodulation Distortion |
Less than 0.03% |
| S/N Ratio (IHF-A) |
120 dB |
| Frequency Response |
20 Hz - 20 kHz (+0/-0.15 dB); 10 Hz - 100 kHz (+0/-0.4 dB) |
| Damping Factor |
350 |
| Crosstalk / Separation |
Greater than 65 dB |
| Minimum Speaker Impedance |
4 ohms |
| Inputs and Gain |
| Gain, Unbalanced |
28 dB |
| Gain, Balanced |
24 dB |
| Input Sensitivity, Unbalanced |
2.6 V |
| Input Sensitivity, Balanced |
4.2 V |
| Input Impedance, Unbalanced |
12.5 kilohms |
| Input Impedance, Balanced |
100 kilohms |
| General |
| Dimensions (W x H x D) |
485 x 238 x 465 mm |
| Front Panel Height |
220 mm |
| Power Requirements |
230 V, 50 Hz |
| Power Consumption |
1200 W |
| Standby Power Consumption |
Less than 0.5 W, less than 2 W network wakeup |
| Net Weight |
59.9 kg |
| BTU Rating |
3450 BTU/h |
