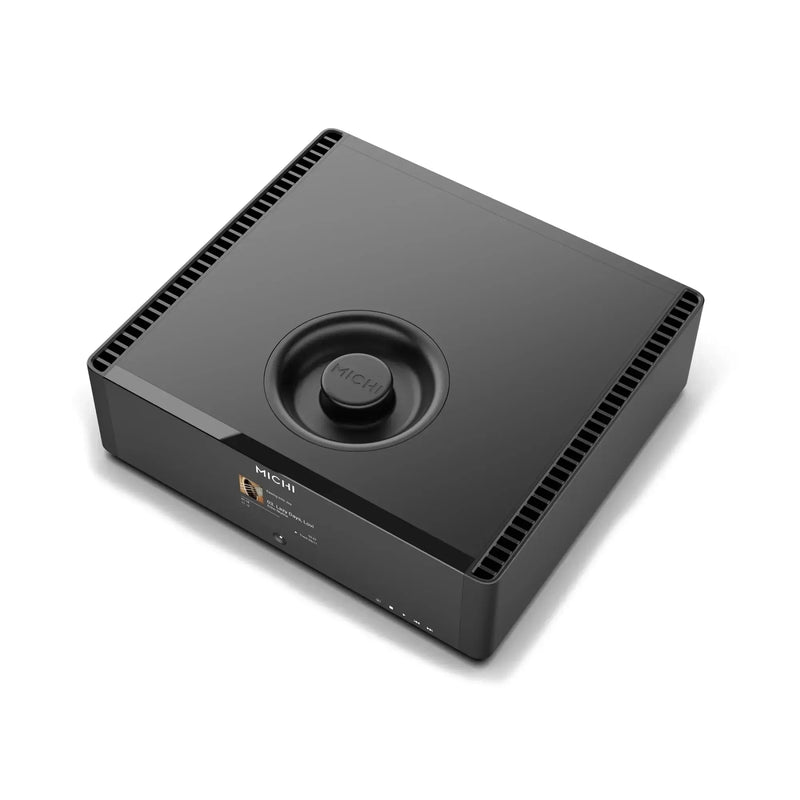

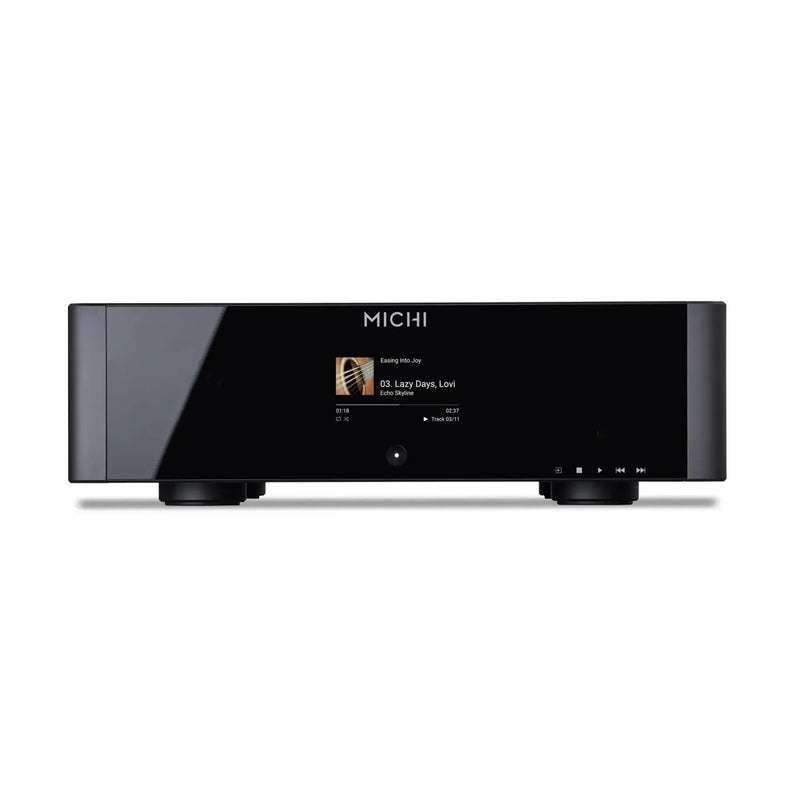

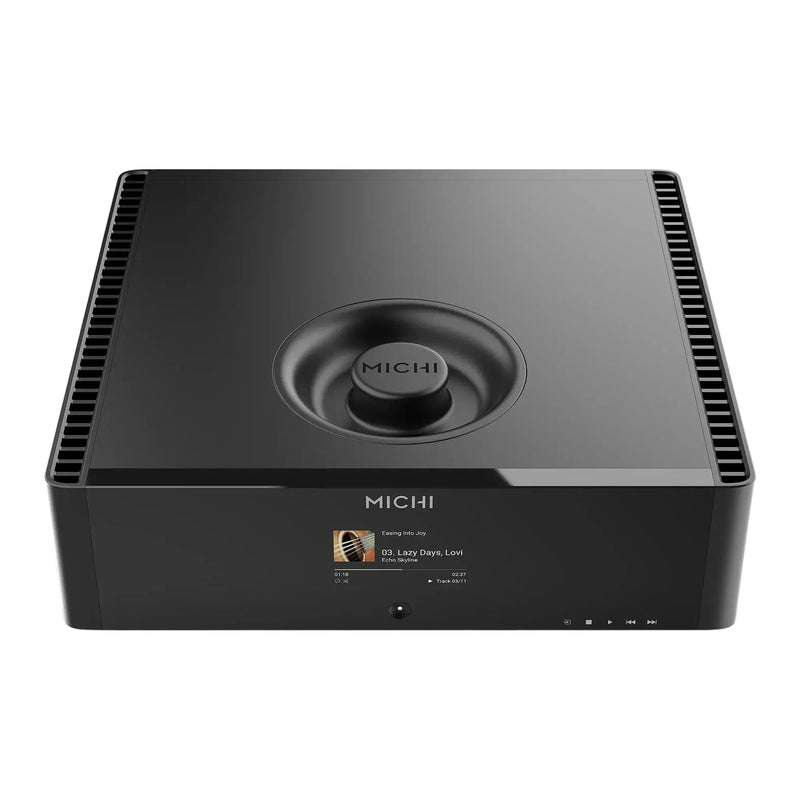

Rotel Michi Q5 CD Transport and DAC
Rotel Michi Q5 CD Transport and DAC
Rotel Michi Q5 CD Transport and DAC
Rotel Michi Q5 CD Transport and DAC
Rotel Michi Q5 CD Transport and DAC

Rotel Michi Q5 CD Transport and DAC

by Rotel
SKU
Rs. 713,900.00 - Rs. 713,900.00
Rs. 713,900.00
Rs. 713,900.00 - Rs. 713,900.00
Rs. 713,900.00
  • Please get in touch with us before placing a direct order
  • ProHiFi is an Authorised Rotel Dealer in India
  • Brand New in a Box Unit(s)
  • Price includes GST & Shipping
  • Official Rotel India Warranty

Country of Origin:

The Michi Q5 is a combined CD transport and digital to analogue converter. Disc playback uses a top-loading mechanism machined from CNC aluminium, while conversion is handled by an ESS SABRE ES9028PRO 32-bit/768 kHz 8-channel DAC configured with four channels dedicated to each stereo channel. Fully balanced circuitry and dual toroidal transformers keep total harmonic distortion below 0.0006%.

The Q5 also functions as a standalone DAC for external sources. Coaxial and optical inputs accept LPCM up to 24-bit/192 kHz, and PC-USB supports 32-bit/384 kHz PCM, native DSD to 11.2 MHz and MQA decoding. A full-colour TFT front panel displays CD album artwork, and RS232 and Ethernet ports allow integration with control systems.

Key Features

  • CNC aluminium top-loading high precision CD mechanism
  • ESS SABRE ES9028PRO 32-bit/768 kHz 8-channel DAC
  • Four DAC channels dedicated to each stereo channel
  • Fully balanced circuitry with dual toroidal transformers
  • Coaxial and optical inputs up to 24-bit/192 kHz
  • PC-USB with native DSD and MQA support
  • Fully balanced differential XLR and RCA outputs
  • Full-colour TFT display with CD album artwork
  • RS232 and Ethernet for control system integration
  • Certified Roon Tested for reliable software integration

Warranty

This product comes with a 2-year manufacturer warranty.

Why Consider the Michi Q5

Buying a transport and a DAC separately means two chassis, two power supplies and an interface between them. The Q5 removes that interface entirely for disc playback while still accepting three external digital sources, so a streamer, a television and a computer can all route through the same converter. The 4.9 V balanced output is high enough to drive a power amplifier directly in systems where the Q5 is the only source.

Ideal For

  • CD collections alongside streaming and computer audio sources
  • Systems needing one high-quality DAC for several sources
  • Fully balanced Michi and Rotel separates installations
  • Custom installations using RS232 or Ethernet control

What's in the Box

  • Michi Q5 Transport DAC
  • Michi remote control
  • Power cable
  • Owner's manual

Technical Specifications

Performance
Total Harmonic Distortion Less than 0.0006% (CD, coaxial, optical, PC-USB)
Intermodulation Distortion Less than 0.002%
Frequency Response 20 Hz - 20 kHz (+0, -0.1 dB); 10 Hz - 70 kHz (+0, -3 dB)
S/N Ratio (A Weighted) Greater than 115 dB
Dynamic Range Greater than 99 dB
Channel Balance Ā±0.5 dB
Channel Separation Greater than 104 dB at 10 kHz
Digital Section
Digital to Analogue Converter ESS SABRE ES9028PRO, 32-bit/768 kHz
Input Sensitivity 0 dBfs / 75 ohms
Coaxial / Optical Inputs LPCM up to 24-bit/192 kHz
PC-USB USB Audio Class 2 up to 32-bit/384 kHz
DSD Support Native DSD up to 4x (11.2 MHz), DoP up to 2x (5.6 MHz)
MQA MQA and MQA Studio up to 24-bit/384 kHz
Digital Output CD audio only, 16-bit/44.1 kHz
Roon Roon Tested
Analogue Outputs
Output Level, Unbalanced RCA 2.3 V
Output Level, Balanced XLR 4.9 V
Output Impedance, RCA 100 ohms
Output Impedance, XLR 4 kilohms
General
Dimensions (W x H x D) 485 x 150 x 452 mm
Front Panel Height 132 mm
Power Requirements 230 V, 50 Hz
Power Consumption 25 W
Standby Power Consumption Less than 0.5 W
Net Weight 23.5 kg
