| Sales Package |

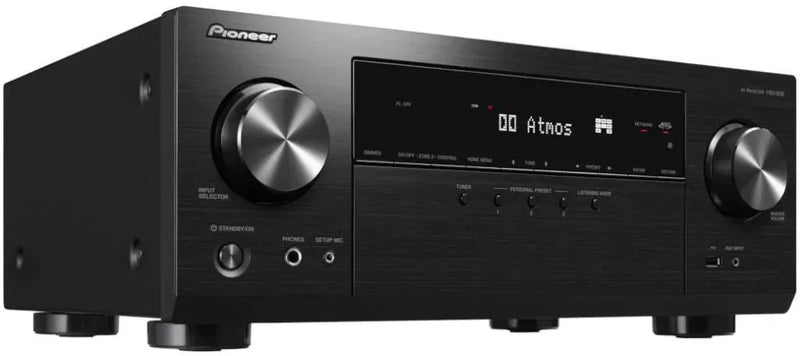

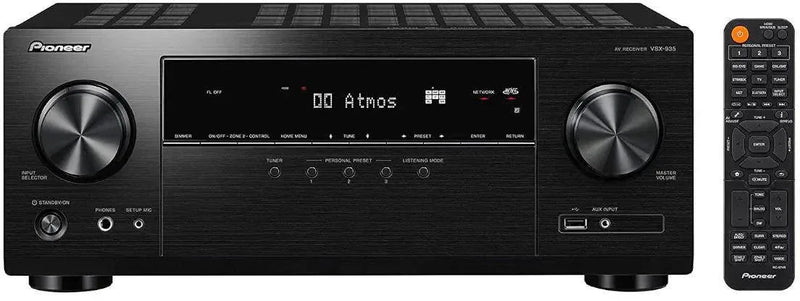

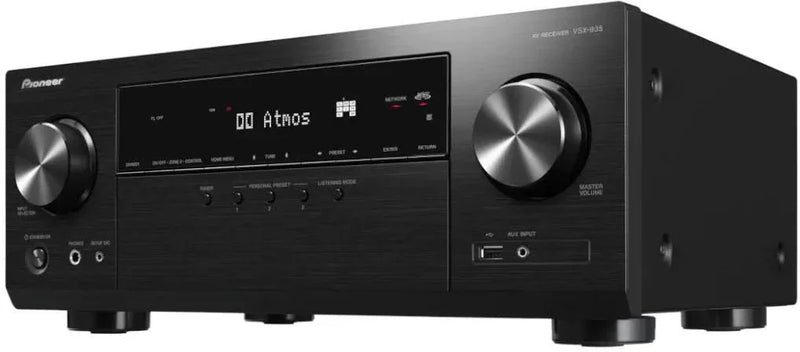

Pioneer VSX-935 7.2 Channel Dolby Atmos AV Receiver and User documentation
|
| Brand |
Pioneer |
| Model |
VSX 935 |
| Year |
|
| Color |
black |
| Dimension |
435 x 173 x 370.5 mm |
| Weight |
9.6 kg |
| Amplification |
Channels: 7 Amplification Type: Direct Energy 170 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven) 80 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven, FTC)
|
| Audio Features |
Dolby Atmos ® , Dolby Surround Upmixer DTS:X ® , DTS Neural:X ® Upmixer Reflex Optimizer Dolby Atmos Height Virtualizer DTS Virtual:X Dolby ® TrueHD, Dolby Digital Plus DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS-HD Express DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch) Digital Quad-Core 32-bit DSP (Cirrus Logic) 192 kHz/24-bit D/A Conversion for Hi-Res Audio Enhanced Audio Return Channel (eARC) on HDMI OUT (MAIN) MCACC Auto Room Tuning • Phase Control • Subwoofer EQ Advanced Sound Retriever (2ch) Advanced Surround Modes • Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Mono Music, Front Stage Surround Advance
|
| Video Features |
Support HDMI 2.1: (HDMI IN 1-3) with 8K, VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame transport), DSC (Display Stream Compression), and QMS (Quick Media Switching) pass-through Supports HDR10+, HDR10, and HLG: 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/10-bit, 4:2:2/12-bit), 4K60p (4:4:4/12-bit) and BT.2020 color; Deep Color™ (36-bit), "x.v.Color", LipSync, and HDCP 2.3 Dolby Vision Compatible: ✓ Ultra HD Upscaling: 4K to 8K, 1080p to 8K/4K
|
| Network Features |
Works with Alexa supporting multi-room music Works with Hey Google and Chromecast built-in DTS Play-Fi ® supporting Critical Listening mode with Pioneer Music Control App *2 Apple AirPlay 2 with Siri Voice Control Works with SONOS supporting multiple Sonos Connect control and Volume Pass Through mode Amazon Music HD *3 , Pandora ® , Spotify, TIDAL, and Deezer Hi-Fi Music- Streaming Services Ready *4 Internet Radio with TuneIn Hi-Res Audio File Playback via USB/Network Up to 192 kHz/24-bit ALAC *5 , AIFF, FLAC, WAV (RIFF) and 5.6 MHz DSD* 6
|
| Operating Features |
Personal Preset Dialog Enhancement Bluetooth® Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in Pioneer Remote App Ready for Multi-room Entertainment Control and Network Streaming User-Friendly GUI with System Setup Menu On-Screen Information for Audio/Video Status Auto Power Off in HDMI Standby Through AM/FM Tuner 40 Presets Sleep Timer User-Friendly Simple Remote Control
|
| Connections |

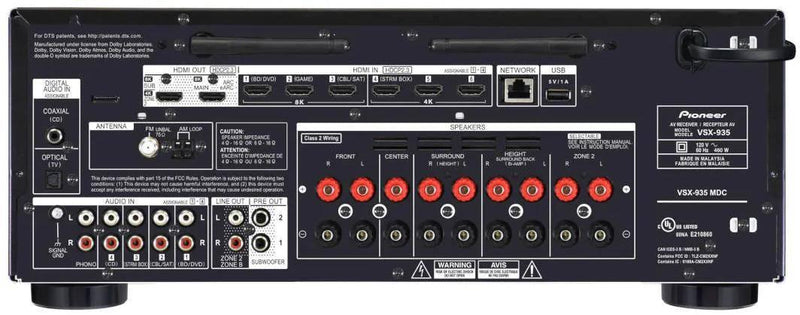

Front Terminals: USB 1 In for USB Drive MCACC Setup MIC In Audio 1 In (Mini Stereo Jack) Phones 1 Out Rear Terminals: HDMI 6 In (4 Assignable) HDMI 2 Out Ethernet 1 In USB 1 In for USB Drive Audio 4 In (Assignable) Phono (MM) 1 In Digital Coaxial 1 In (Assignable) Digital Optical 1 In (Assignable) Subwoofer 2 Pre Out ZONE 2 / Zone B Line Out for Wireless Headphones Speaker 9ch Out (FRONT, CENTER, SURROUND, SURROUND BACK/HEIGHT/Bi-AMP/ZONE 2) FM/AM Antenna
|
| Power Requirements |
Power Requirements: AC 120 V, 60 Hz Power Consumption/Standby: 460 W/0.1 W |
