The Rotel A14MKII is a Class AB integrated amplifier delivering 80 watts per channel into 8 ohms, rising to 150 watts into 4 ohms. A critically tuned power supply, DAC and amplifier circuit combine analogue, digital, PC-USB with MQA decoding, moving magnet phono and aptX and AAC Bluetooth in one flagship-of-the-14-Series chassis.

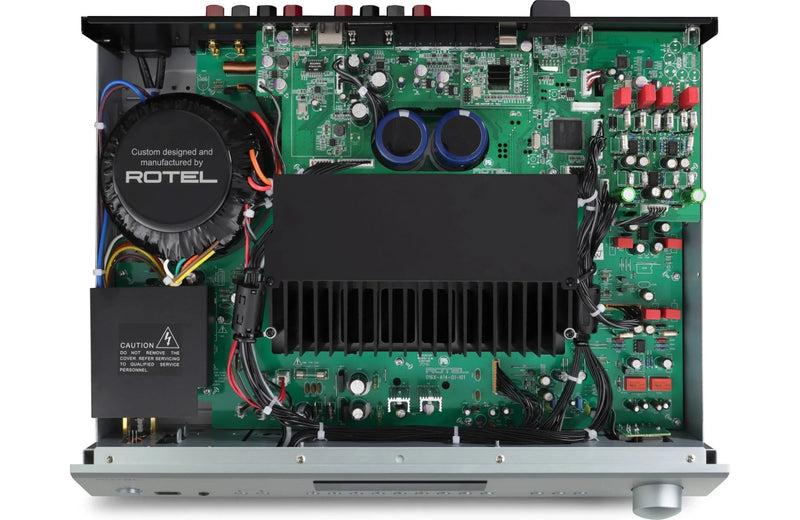

An oversized toroidal transformer and four slit-foil capacitors supply the output stage, and tone controls with a bypass mode keep the signal path clean when full-range tonal adjustment is not needed. The A14MKII is certified Roon Tested for reliable network playback.
Key Features
- 150 watts per channel Class AB into 4 ohms
- Texas Instruments 32-bit/384 kHz DAC
- MQA and MQA Studio decoding up to 24-bit/384 kHz
- Moving magnet phono stage for turntable connection
- aptX and AAC wireless Bluetooth streaming
- Oversized toroidal transformer with slit-foil capacitors
- Tone controls with bypass mode
- Damping factor of 220
- Certified Roon Tested for reliable software integration
- Available in black and silver finishes
Warranty
This product comes with a 2-year manufacturer warranty.
Why Consider the Rotel A14MKII
As the flagship of Rotel's 14 Series, the A14MKII offers the widest connectivity and highest power output in that family, useful where the room or loudspeakers demand more than the A12MKII or A11MKII can supply. The combination of MQA decoding, a phono stage and Bluetooth in one amplifier suits a household using several different source types without wanting several separate boxes.
Ideal For
- Medium rooms with moderately demanding loudspeakers
- Households mixing vinyl, streaming and digital sources
- Listeners wanting MQA decoding without a separate streamer
- A step up from the A12MKII where more power is needed
What's in the Box
- Rotel A14MKII Integrated Amplifier
- Remote control
- Power cable
- Owner's manual
Technical Specifications
| Amplifier Performance |
| Maximum Power Output |
150 W per channel, 4 ohms |
| Continuous Power Output |
80 W per channel, 8 ohms |
| Total Harmonic Distortion |
Less than 0.018% |
| Intermodulation Distortion |
Less than 0.03% |
| Damping Factor |
220 |
| Tone Controls |
±10 dB at 100 Hz / 10 kHz |
| Frequency Response and Noise |
| Line Level |
10 Hz - 100 kHz (0 ±0.5 dB) |
| Digital Inputs |
10 Hz - 90 kHz (0 ±2 dB) |
| Phono Input |
20 Hz - 20 kHz (0 ±0.5 dB) |
| S/N Ratio, Line |
100 dB |
| S/N Ratio, Digital |
103 dB |
| S/N Ratio, Phono |
90 dB |
| Input Sensitivity and Impedance |
| Input Sensitivity, Line |
230 mV |
| Input Sensitivity, Phono MM |
3.4 mV |
| Input Impedance, Line |
24 kilohms |
| Input Impedance, Digital |
75 ohms |
| Input Impedance, Phono MM |
47 kilohms |
| Input Overload, Line |
4 V |
| Input Overload, Phono |
50 mV |
| Digital Section |
| Digital to Analogue Converter |
Texas Instruments, 32-bit/384 kHz |
| Coaxial / Optical Inputs |
LPCM up to 24-bit/192 kHz |
| PC-USB |
Class 1 up to 24-bit/96 kHz, Class 2 up to 32-bit/384 kHz |
| MQA |
MQA and MQA Studio up to 24-bit/384 kHz |
| Bluetooth |
aptX and AAC |
| Outputs |
| Preout Level |
1.2 V |
| Output Impedance |
470 ohms |
| General |
| Dimensions (W x H x D) |
430 x 93 x 345 mm |
| Front Panel Height |
80 mm |
| Power Requirements |
230 V, 50 Hz |
| Power Consumption |
280 W |
| Standby Power Consumption |
Less than 0.5 W |
| Net Weight |
8.94 kg |
| BTU Rating |
632 BTU/h |
