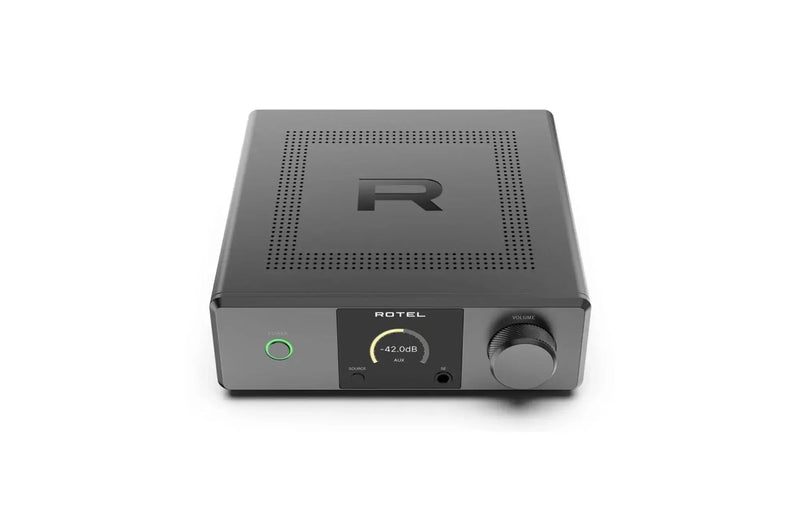

The Rotel DX-5 is a personal audio integrated amplifier and DAC in a compact, size-efficient chassis, delivering 25 watts per channel into 8 ohms and 33 watts into 4 ohms of Class AB power. An ESS ES9039Q2M DAC handles conversion for coaxial, optical and PC-USB inputs, the latter supporting 32-bit/384 kHz PCM and DSD to 11.2 MHz.
A full-colour TFT display, front panel 6.35 mm headphone jack, dedicated remote and Roon Tested certification are packed into a footprint small enough for a desk. HDMI ARC and CEC allow the DX-5 to serve as a compact television audio solution, and a subwoofer output extends bass in smaller rooms.
Key Features
- ESS ES9039Q2M digital to analogue converter
- PC-USB with 32-bit/384 kHz PCM and DSD support

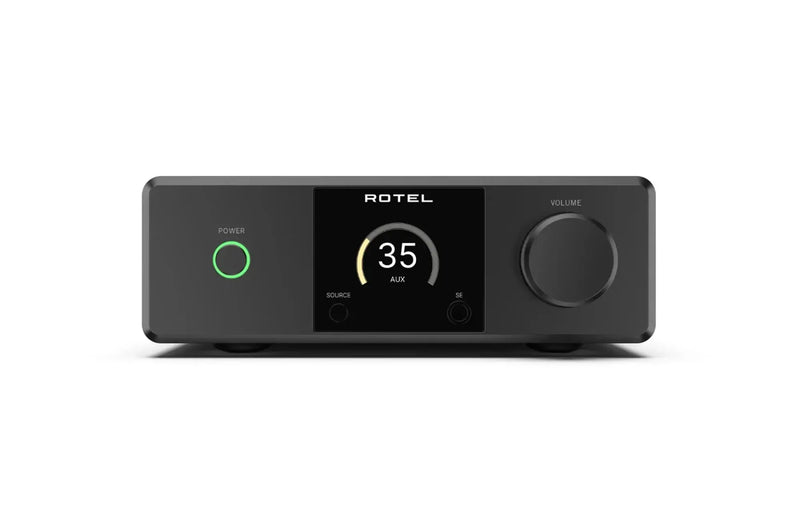

- Full-colour TFT front panel display
- Front panel 6.35 mm headphone jack
- HDMI ARC and CEC for television audio
- aptX HD and AAC wireless Bluetooth streaming
- Subwoofer output for bass extension
- Certified Roon Tested for reliable software integration
- Compact, size-efficient chassis for desktop use

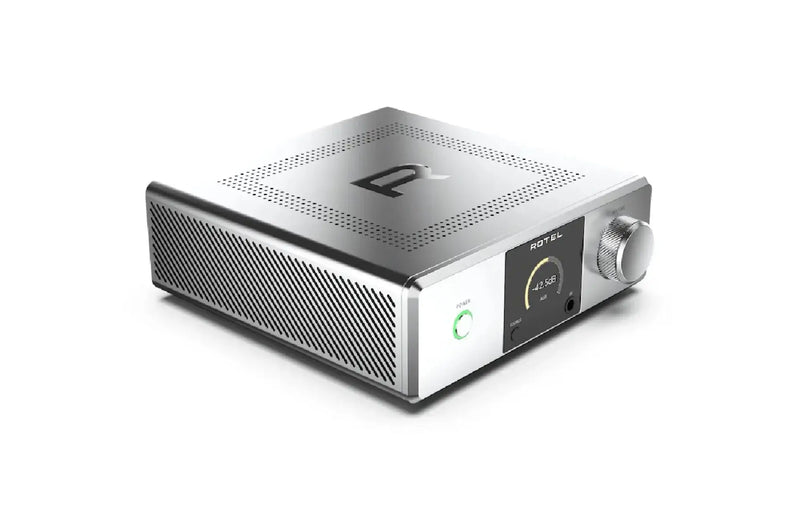

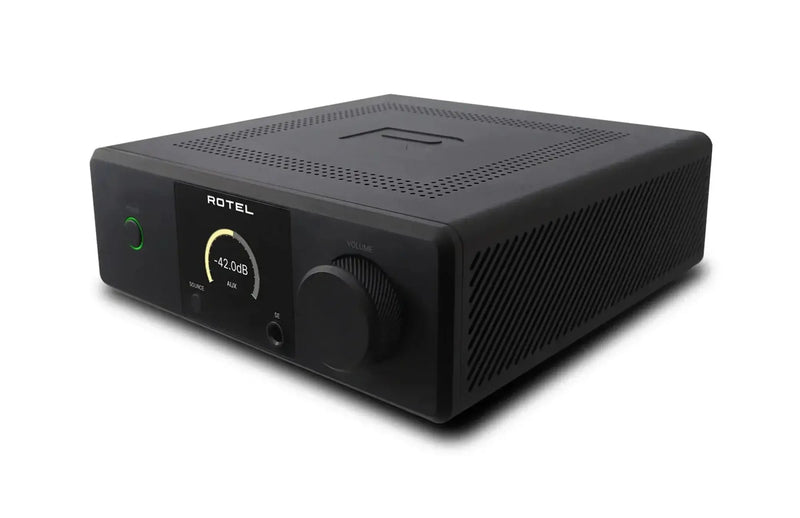

- Available in black and silver finishes
Warranty
This product comes with a 2-year manufacturer warranty.
Why Consider the Rotel DX-5
The DX-5 is built for spaces where a full-size integrated amplifier does not fit: a desk, a small shelf or a compact secondary system. It still carries a genuine ESS DAC, DSD support and a proper headphone output, so the reduction in size does not come with a reduction in what it can do, only in the power available for large loudspeakers.
Ideal For
- Desktop systems and nearfield listening
- Small secondary rooms with efficient bookshelf speakers
- Headphone listening from digital and analogue sources
- Compact systems that also need to handle television audio
What's in the Box
- Rotel DX-5 Integrated Amplifier
- Remote control
- Power cable
- Owner's manual
Technical Specifications
| Amplifier Performance |
| Power Output (FTC) |
25 W per channel |
| Maximum Power Output |
33 W per channel, 4 ohms |
| Continuous Power Output |
25 W per channel, 8 ohms |
| Total Harmonic Distortion |
Less than 0.03% |
| Intermodulation Distortion |
Less than 0.03% |
| Damping Factor |
140 |
| Frequency Response and Noise |
| Line Level |
10 Hz - 100 kHz (±0.19 dB); 10 Hz - 80 kHz (±2 dB max) |
| S/N Ratio (IHF-A) |
Greater than 100 dB |
| Input Sensitivity and Impedance |
| Input Sensitivity |
680 mV |
| Input Impedance |
100 kilohms |
| Input Overload |
4.2 V |
| Digital Section |
| Digital to Analogue Converter |
ESS ES9039Q2M |
| HDMI |
ARC with CEC |
| Coaxial / Optical Inputs |
SPDIF LPCM up to 24-bit/192 kHz |
| PC-USB |
USB Audio Class 2.0 up to 32-bit/384 kHz |
| DSD Support |
DSD up to 4x (11.2 MHz), DoP up to 2x (5.6 MHz) |
| Bluetooth |
aptX HD and AAC |
| Roon |
Roon Tested |
| Other |
Subwoofer output; front panel 6.35 mm headphone jack |
| General |
| Dimensions (W x H x D) |
215 x 76 x 251 mm |
| Front Panel Height |
70 mm |
| Power Requirements |
220 V, 50 Hz |
| Power Consumption |
80 W |
| Standby Power Consumption |
Less than 0.5 W |
| Net Weight |
4.1 kg |
| BTU Rating |
241 BTU/h |
