Immersive movies, audiophile-grade music, and smooth 4K gaming can be yours when you add the Pioneer VSX-LX805 11.4-Channel Network A/V Receiver as the centerpiece of your home entertainment system. Enjoy 8K HDR movies with 11.2-channel or Dolby Atmos/DTS:X-compatible 7.2.4-channel surround sound, with a powerful 150W per channel. Audio is made to sound pristine, thanks to premium components, such as dual 32-bit ESS ES9026PRO Hyperstream DACs. The VSX-LX805 supports a wide variety of content options, with seven HDMI inputs, a host of audio inputs, Bluetooth, and Wi-Fi streaming with a host of built-in apps. Content you can spread around your home with support for three distinct zones.
Warranty:
1.5 year manufacturer's warranty
Product highlights:
- 300W @ 6ohms, 150W FTC x 11 ch,
- 11.4 receiver with Dirac Live, Dolby Atmos,
- BlueTooth aptX , WiFi,
- 1 x 4K and 1 x 8K HDMI out 6 x 8K HDMI in,
- 1 x 4K HDMI in
- IMAX Enhanced
- Works with Google Assistant, Alexa, Sonos,
- Chromecast built-in
- Advanced CI Features
- Roon Ready, Auro3D,
- 2 zone video, 3 zone audio
- XLR in/out, passive sub drive
Features:
- Dolby Atmos and DTS:X Support: Offers three-dimensional audio experience with object-based surround formats.
- 4K Ultra HD and HDR Passthrough: Transmits high-resolution video and HDR content seamlessly to compatible displays.
- Multi-Zone Audio: Allows for audio playback in different rooms, creating a versatile and synchronized home audio setup.
- Network Connectivity and Streaming: Enables access to online music services and allows for multi-room audio distribution through integrated Wi-Fi and Ethernet connectivity.
Get ready to immerse yourself in an all-encompassing entertainment experience. Whether you have up-firing speakers or not, the HDMI Enhanced Audio Return Channel (eARC) simplifies connectivity and supports the latest high-bitrate audio formats, including Dolby Atmos, DTS-HD Master Audio, DTS:X, and Dolby TrueHD. Enjoy lifelike, object-oriented sound that moves smoothly and realistically around you.
No matter the shape of your room, the VSA-LX805 includes a Dirac Live premium license to adjust sound settings based on the unique acoustic properties of your listening environment, as well as and an optional Bass Control upgrade for precision low-frequency reproduction. With its precise audio reproduction through hardline cable connections or streaming platforms, this AV receiver is compatible with RCA, Phono, HDMI, digital optical, balanced XLR and more; the VSA-LX805 is the operations centre for your entire home theatre.
With built-in access to various streaming and smart home assistant platforms, such as Apple AirPlay 2, Google Home, and Alexa, the VSA-LX805 is a smart home solution, music system and home cinema hub all-in-one. It also features advanced technologies like Auto Phase Control Plus and Advanced Sound Retriever to optimise your audio experience. The VSA-LX805 is designed to provide a premium entertainment experience and untethered levels of quality and performance.
Technical Specifications:
| Sales Package |
Pioneer VSX-LX805 11.4 Channel AV Receiver, User documentation
|
| Brand |
Pioneer |
| Model |
VSX-LX805 |
| Color |
black |
| Channels |
11.2
7.2.4 |
| Amplifier Class |
Class-AB |
| Power Output per Channel |
2-Channel Driven:
150 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD |
| Frequency Response |
10 Hz to 100 kHz +1/-3 dB (Direct, Pure Direct Mode) |
| THD+N |
0.08% (20 Hz to 20 kHz) |
| Speaker Impedance |
4 to 16 Ohms |

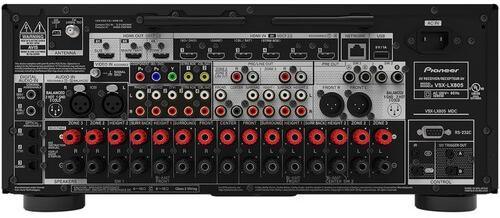

| Rear A/V Inputs |
6 x HDMI 2.1
2 x RCA Composite
1 x 3RCA Component
1 x Stereo XLR Balanced
4 x Stereo RCA
1 x Stereo RCA (Phono) with Ground Screw
2 x Digital Coaxial
3 x Optical TOSLINK |
| Rear A/V Outputs |
3 x HDMI 2.1 Zone 2 Pre-Out
4 x RCA Subwoofer Pre-Out
1 x Stereo RCA Zone 2 / Zone B Pre-/Line-Out
1 x Stereo RCA Zone 3 Pre-/Line-Out
1 x Stereo XLR Pre-Out
5 x Stereo RCA Pre-Out
1 x RCA Pre-Out |

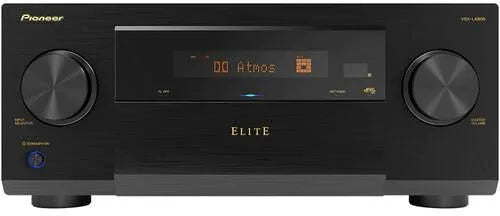

| Front I/O |
1 x 1/4" / 6.35 mm Headphone Output
1 x 1/8" / 3.5 mm Setup Mic Input
1 x USB-A Input/Output
1 x HDMI Input |
| Other Rear I/O |
1 x AM Block Input
1 x FM Coaxial F-Type Input
1 x RJ45 (Ethernet) Input/Output
1 x USB-A Input/Output
1 x DE-9 (RS-232C) Input
1 x 1/8" / 3.5 mm (IR) Input
1 x 1/8" / 3.5 mm (IR) Output
2 x 1/8" / 3.5 mm (12 V Trigger) Output |
| Speaker I/O |
15 x Binding Post Pairs (Front, Center, Height, Height 2, Rear, Rear Surround)
|
| HDCP Support |
Yes, Version 2.3 |
| Audio Return Channel (ARC) |
ARC, eARC |
| HDMI CEC |
Yes |
| Bi-Amp Capability |
Yes |
| Dimension |
435.0 x 185.0 x 468.0 mm |
| Weight |
21.5 kg |
