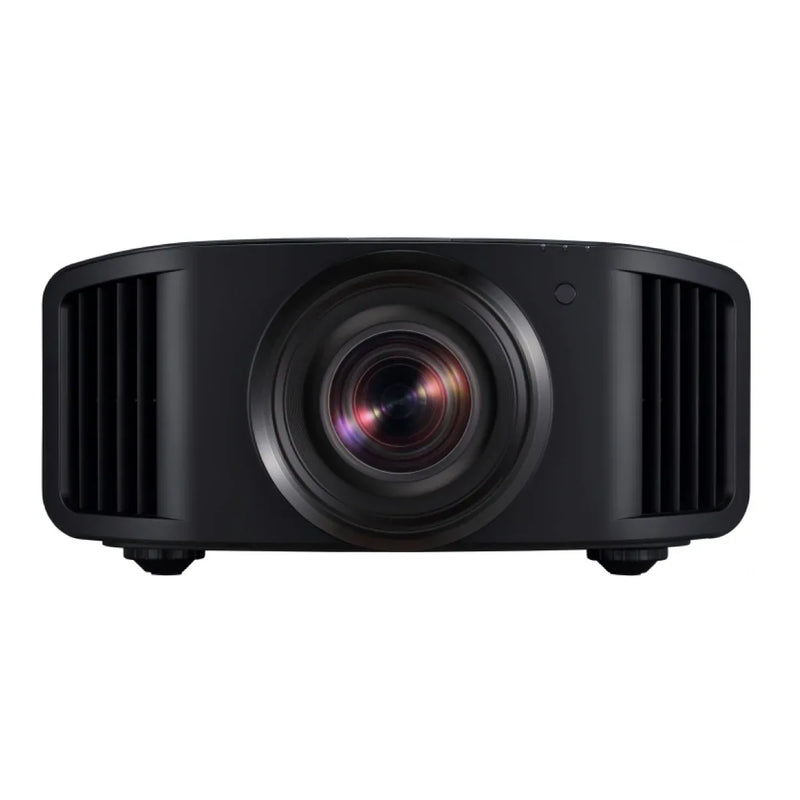

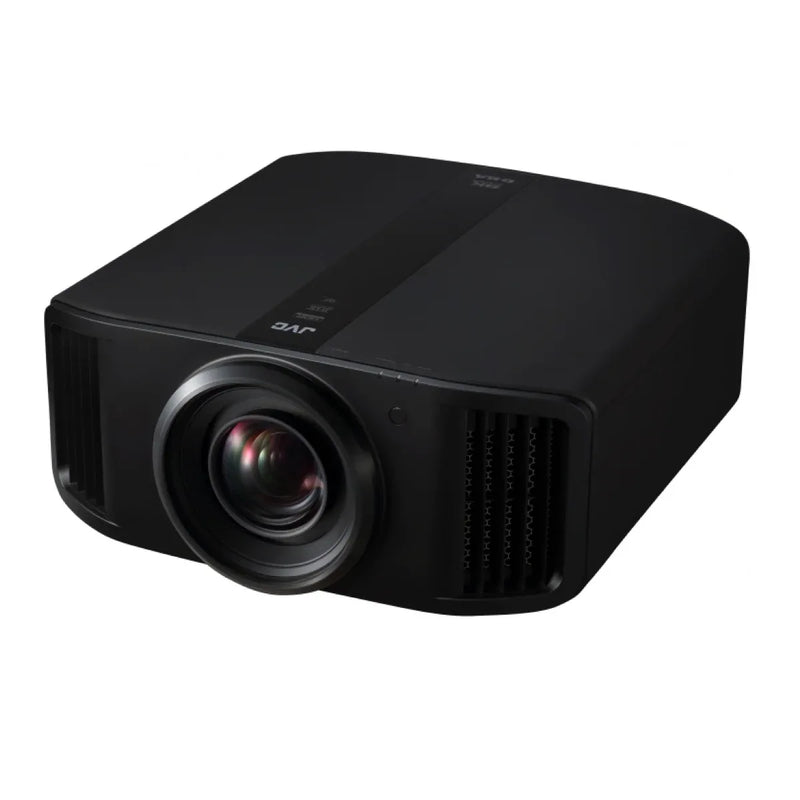

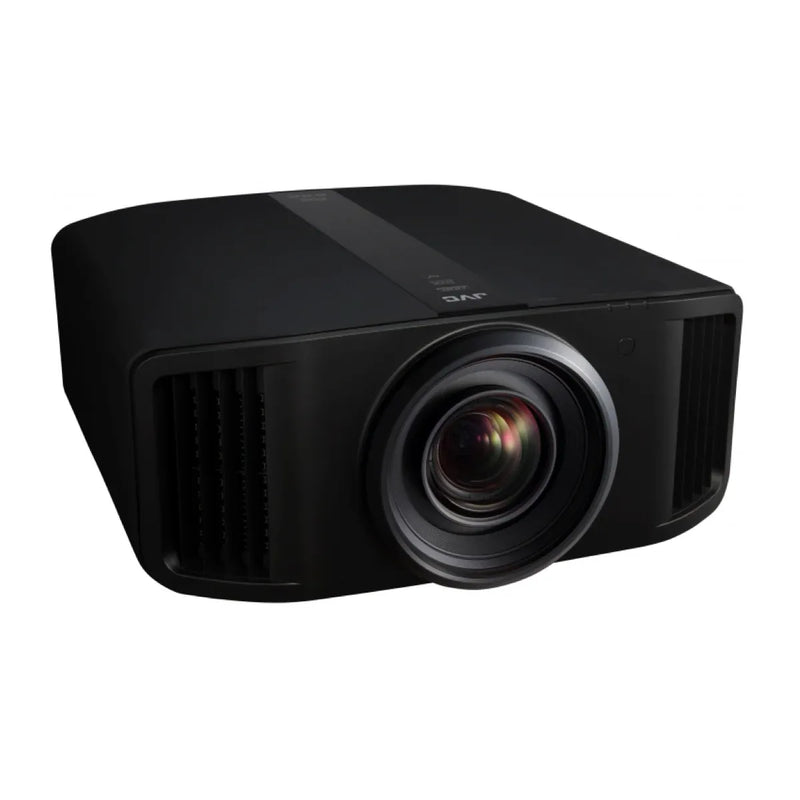

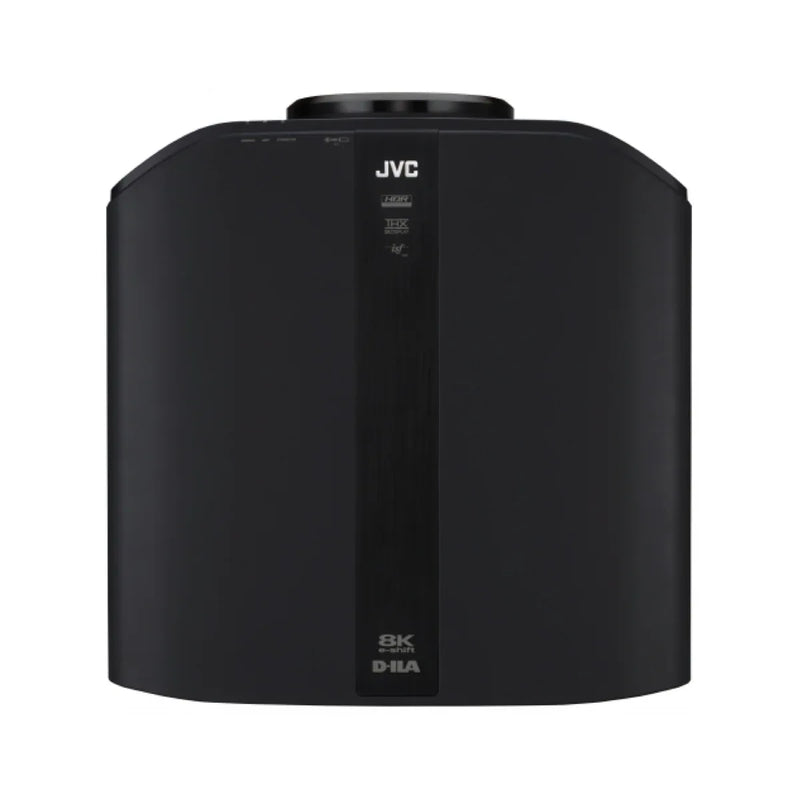

JVC DLA-NX9 8K e-shift Projector

by JVC
SKU DLA-NX9
Original price Rs. 1,699,900.00 - Original price Rs. 1,699,900.00
Original price Rs. 1,699,900.00
Rs. 1,699,900.00
Rs. 1,699,900.00 - Rs. 1,699,900.00
Current price Rs. 1,699,900.00
  • Get in touch for a Discounted Price
  • Authorised JVC Partner in India
  • Brand New in a Box Unit(s)
  • Price is inclusive of all taxes
  • Official JVC India Warranty

Country of Origin:

The DLA-NX9 is the world's first 8K/e-shift home theater projector featuring a new 0.69-inch native 4K D-ILA device with a whole new external design. 8K/e-shift technology together with its 100mm diameter all-glass lens achieves 8K-equivalent resolution (8192 x 4230) that rivals reality even on large screens. Unique Multiple Pixel Control technology converts FHD and 4K images to high-definition 8K images. Auto Tone Mapping function which automatically adjusts settings based on the mastering information projects HDR10 content at optimum quality. Combining brightness of 2,200 lm, a dynamic contrast ratio of 1,000,000:1, and a wide color gamut covering beyond the DCI-P3 range, the projector faithfully reproduces the latest content including HDR10 and HLG. Renewed Clear Motion Drive together with Motion Enhance significantly reduces motion blur. Go further, and be the first to experience the high-definition, high-quality images exceeding 4K.

Warranty:

1-year manufacturer's warranty

Features:

  • Complies with the latest HDMI/HDCP 2.2 standard to enable full spec 4K signal input with 18Gbps transmission bandwidth (4K60P 4:4:4, 4K60P 4:2:2/36-bit, 4K24P 4:4:4/36-bit)
  • Light source: NSH 265 W lamp
  • Resolution: 8192 x 4320 (with 8K/e-shift)
  • Input connectors: HDMI x 2 (3D, Deep Color/HDCP 2.2)
  • Output and control connectors: RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini-DIN 3pin)
  • 3D formats: Frame Packing, Side-by-Side (Half), and Top and Bottom
  • JVCs proprietary 8K/e-shift technology reproduces image quality beyond 4K** (The projector does not support 8K signal input)
  • New 0.69-inch 4K D-ILA (4096 x 2160) device x 3
  • 18-element, 16-group all-glass 100mm diameter high-quality lens
  • Multiple Pixel Control image processor accurately reproduces images closer to the original
  • High brightness of 2,200 lm provides vibrant and dynamic imagery
  • Native Contrast Ratio of 100,000:1 translates to a spectacular Dynamic Contrast Ratio of 1,000,000:1
  • The wide Color Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life
  • Compatible with HDR technology that dramatically improves image quality that rivals real life.
  • Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality
  • For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
  • Display the MaxCLL and MaxFALL mastering data available for HDR content on some UHD Blu-ray discs
  • Compatible with Hybrid Log-Gamma that is expected to be used widely in future broadcasting
  • Installation Mode centrally manages nine settings related to installation to enjoy the video best suited for each environment
  • Nine settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect; stored installation modes for various environments can be called up.
  • Renewed Clear Motion Drive supporting 4K60P (4:4:4) signal improves moving images more than ever
  • Motion Enhance technology reduces residual images and blurring that are often found in fast-moving images by optimally controlling the drive of D-ILA devices
  • Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
  • Color Management System with 6-axis Matrix
  • Auto-Calibration Function using an optical sensor* is capable of optimizing essential elements in the image, including color balance, gamma characteristics, color space, and color tracking
  • THX 4K Display Certification to ensure the precise reproduction of picture quality in 4K content, just as the original filmmaker envisioned.
  • ISF C3 (Certified Calibration Controls) mode** to reproduce excellent picture quality optimized for specific environments.
  • Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter
  • *Exclusive JVC software installed in PC and optical sensor are required. Please visit the JVC website for details. **Professional calibration to desired screen is performed by trained dealers

Video Review:


D-ILA (Direct-Drive Image Light Amplification)

D-ILA (Direct-Drive Image Light Amplification) is a JVC-developed technology that delivers unmatched performance, with natural color reproduction, an image so smooth that it rivals film and contrast that does justice to the most demanding program material. D-ILA is liquid crystal technology, but it’s very different from the liquid crystal display (LCD) technology found in many products today. D-ILA is what's called liquid crystal on silicon, or LCOS, but JVC made several improvements to basic LCOS technology to develop D-ILA. At its heart is the D-ILA device, or chip, designed and manufactured by JVC. Every JVC D-ILA projector uses three D-ILA devices, one each for red, green, and blue - the three colors that are combined to create the full-color palette.

All Glass Design Lens
The DLA-NX9 is equipped with a high resolution 18 element, 16 groups all glass lens with a full aluminum lens barrel. To ensure high resolution to every corner of the screen and ensure a wide shift range of +/-100% vertical, +/-43% horizontal a 100mm diameter lens has been selected. Five special low dispersion lenses accommodate the different refractive indexes of Red, Green, and Blue to suppress chromatic aberration, and color bleeding to faithfully reproduce 8K resolution.

8K e-shift Technology
JVC's proprietary 8K e-shift technology reproduces image quality beyond 4K (However, the projector does not support an 8K signal input). The DLA-NX9 is the world's first 8K e-shift home theater projector capable of 8192x4320 image resolution. It works by shifting pixels diagonally by 0.5 pixels, quadrupling the picture resolution. Together with the new Native 4K D-ILA devices, the projector can deliver an 8K image resolution of over 35 million pixels. (8K signal input is not supported.)

THX 4K Display Certification
The projector's THX 4K Display Certification ensures the precise reproduction of picture quality in 4K content, just as the original filmmaker envisioned. JVC's new 0.69 inches Native 4K D-ILA Device with 3.8um pixel pitch exceeds 4x Full HD resolution, displaying over 8.8 million pixels (4096x2160 pixels). With original vertical orientation technology and a planarization technique that reduces light scattering and light diffraction, the device realizes a very high native contrast ratio for a unique, Native 4K image. The result is smooth images without visible pixels even on very large screens.

HDR (High Dynamic Range)
The DLA-NX9 is compatible with HDR10 for content such as UHD Blu-ray and HLG (Hybrid Log-Gamma) content adopted in broadcasting. It is also equipped with a new feature, "Auto Tone Mapping" that automatically adjusts settings based on the mastering information included in HDR content. In addition, there is a Manual HDR Gamma Adjustment for further fine-tuning HDR content

Multiple Pixel Control
This new image-processing developed by JVC helps to create a natural impression that is sharper in areas in focus and softer in areas that are not in focus, enabling you to enjoy highly expressive images with a greater sense of depth.

Superior Color & Contrast Performance
The JVC D-ILA projector incorporates many functions that enhance the color, brightness, and contrast performance. Its high contrast, high brightness, and color reproduction features ensure dynamic and realistic images that are sure to wow even the most discriminating viewer. Combining brightness of 2,200 lumens with a dynamic contrast ratio of 1,000,000:1, the projector reproduces life-like images for HDR (High Dynamic Range) video.

Clear Motion Drive & Low-Latency Mode
Original motion control technology Clear Motion Drive is renewed, and together with Motion Enhance which optimizes the driving of the D-ILA device according to the motion of the image, motion blur is reduced significantly compared to conventional projectors. A Low Latency Mode improves the picture, speeds operation, and reduces gaming/PC frame delays.

Frame Adapter HDR
The color grading of HDR content varies depending on the source material. Optimal viewing can be difficult as the brightness of this content also varies dramatically. Using JVC’s original algorithm, Frame Adapt HDR instantly analyzes the peak brightness of HDR content and adjusts the optimal dynamic range in real-time. All HDR-related picture settings are automatically fine-tuned for the best on-screen image with no need for user adjustment.

Clear Motion Drive & Low-Latency Mode
Original motion control technology Clear Motion Drive is renewed, and together with Motion Enhance which optimizes the driving of the D-ILA device according to the motion of the image, motion blur is reduced significantly compared to conventional projectors. A Low Latency Mode improves the picture, speeds operation, and reduces gaming/PC frame delays.

Frame Adapter HDR
The color grading of HDR content varies depending on the source material. Optimal viewing can be difficult as the brightness of this content also varies dramatically. Using JVC’s original algorithm, Frame Adapt HDR instantly analyzes the peak brightness of HDR content and adjusts the optimal dynamic range in real-time. All HDR-related picture settings are automatically fine-tuned for the best on-screen image with no need for user adjustment.

Optional 3D
The JVC DLA-NX9 can be used to watch 3D movies with the use of an optional 3D Synchro Emitter (model # PK-EM2) and optional 3D glasses (model # PK-AG3) - available and sold separately from JVC. 3D video is supported up to 1080p (not compatible with 4K or 8K).

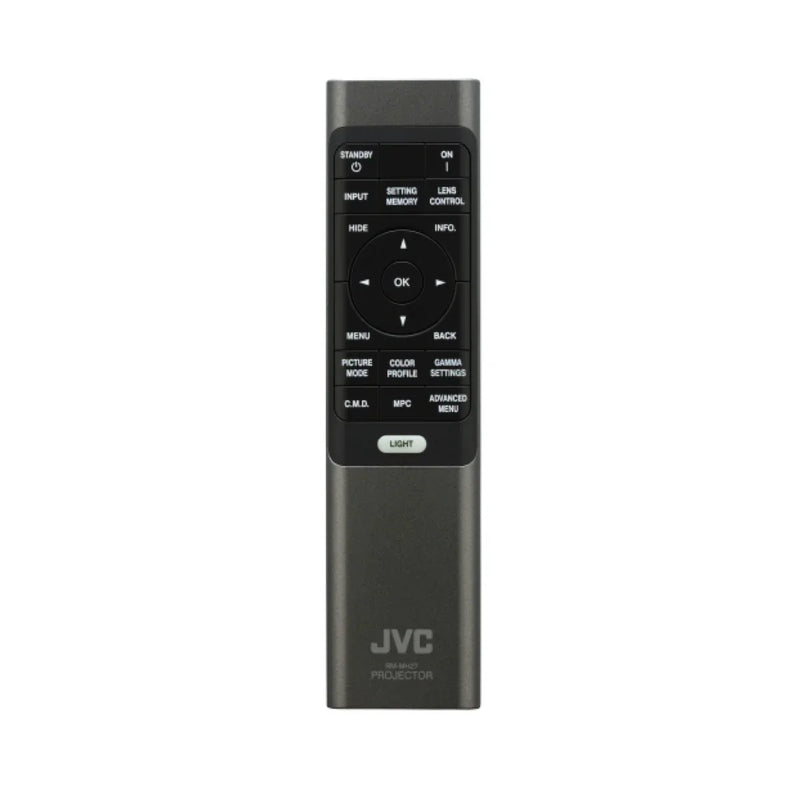

Remote Control

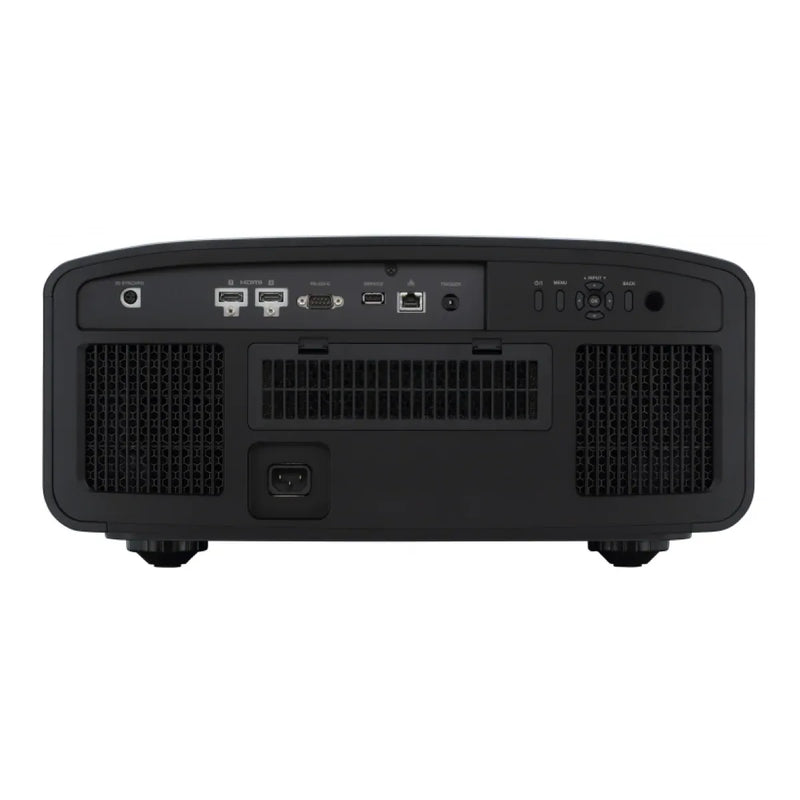

In addition to controls on the projector, the DLA-NX9 comes with an IR remote with back-lit buttons for the wireless operation of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensors to function correctly. The distance between the remote control and the sensors should not exceed 23'. Make sure that there are no obstacles between the remote control and the IR sensors on the projector. It also features an RS232 port, Ethernet jack, and a 12V trigger output.

Mounting Options
The JVC DLA-NX9 can be installed in front of your projection screen or behind your projector screen. It can be tabletop mounted or ceiling mounted (ceiling mount bracket sold separately - see Accessories Tab). If you are tabletop mounting the projector, you can use its adjustable feet to change the image height and projection angle. Before choosing an installation location for your projector, consider the following factors -

Technical Specifications:

Device

0.69-inch Native 4K DILA Device (4096x2160) x3

e-shift Technology

Yes

Resolution

8192 x 4320 (with 8K e-shift)

Lens shift function

+/-100% vertical & +/-43% horizontal, motorized in 16:9 aspect mode

Light source lamp

NSH 265 W

Lamp life

Approx. 4500 hours in Low mode

Brightness

2,200 lm

Contrast Ratio

Native: 100,000:1, Dynamic: 1,000,000:1

Power requirement

AC100V-240V, 50/60Hz

Dimensions: W x H x D, mm

500 x 234 x 518

Dimensions: W x H x D, inches

19-3/4 x 9-1/4 x 20-1/2

Weight, kg

21.8
