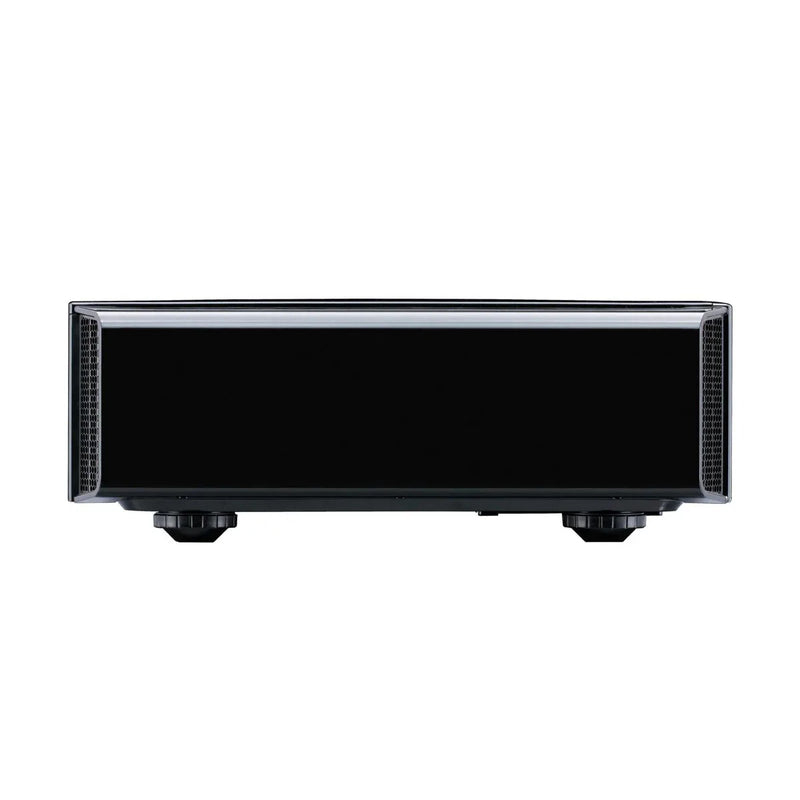

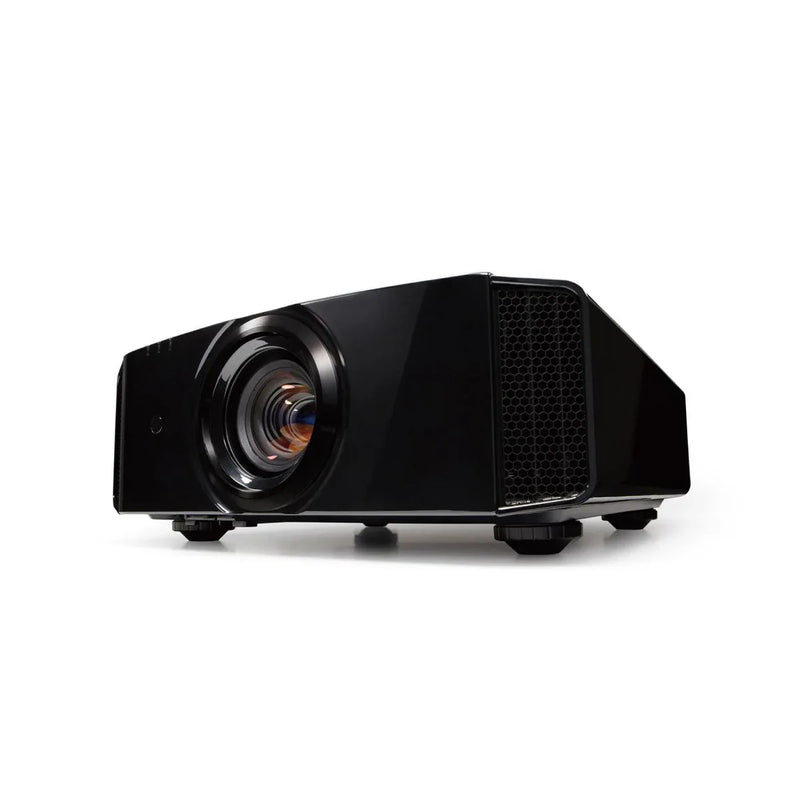

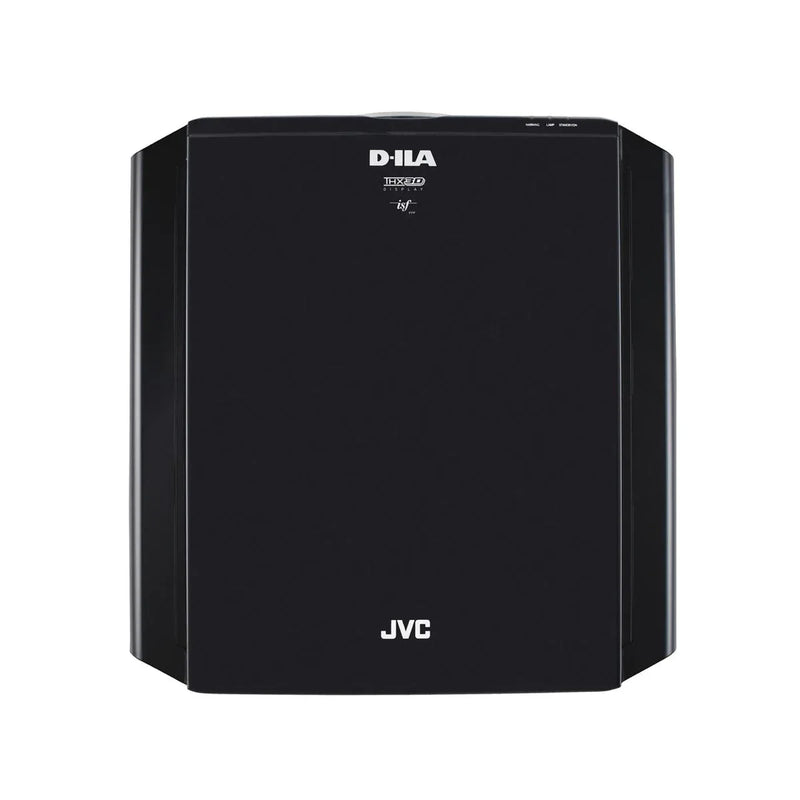

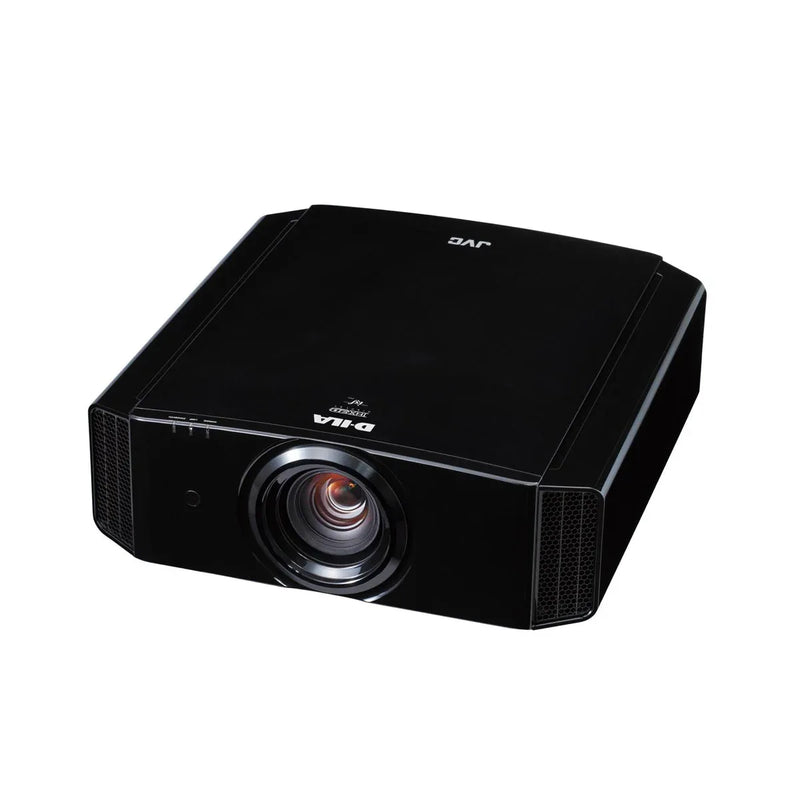

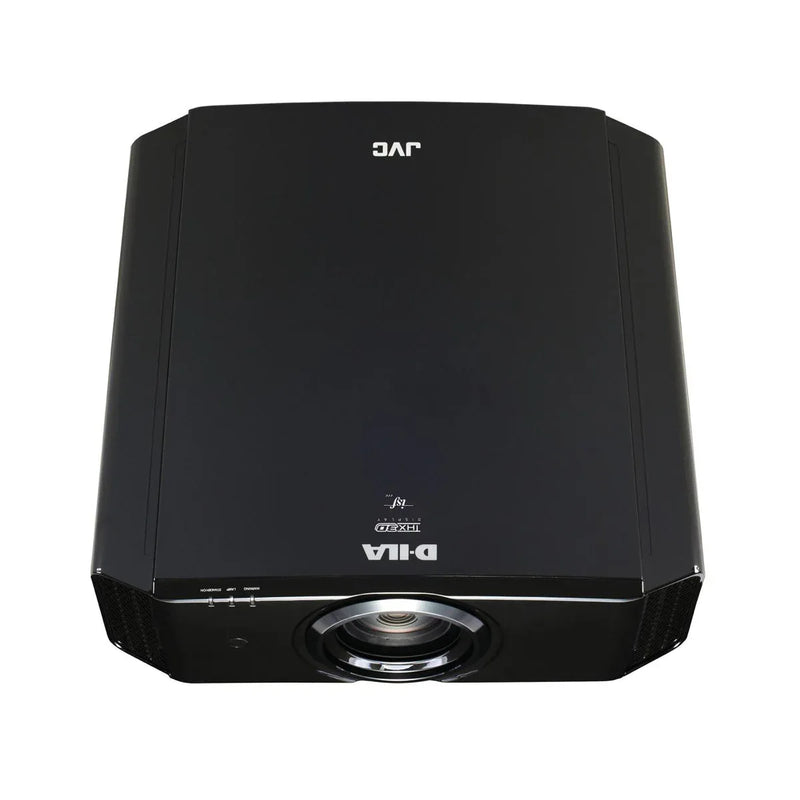

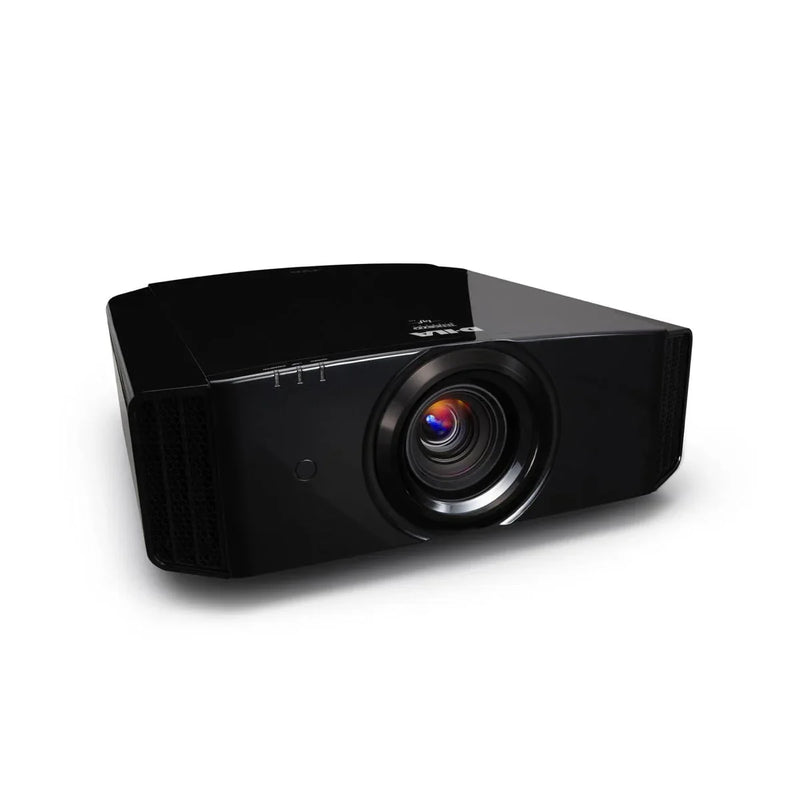

JVC DLA-X9900B (4K e-shift5 Projector)

JVC DLA-X9900BE D-ILA projector lets viewers see the details even in the brightest highlights and darkest shadows with the new 4K e-shift5 technology that employs completely new algorithms to realize even higher definition and improved 4K picture quality. The projector is designed to deliver dynamic HDR images with several manual controls including HDR Auto Picture mode, Picture Tone, and Bright/Dark level gamma adjustment, added with an all-new color profile that is 20% brighter. Complies with the HDMI/HDCP 2.2 standard, and best of all the projector also features user-friendly technologies to create images that match the viewing environment and enhance the viewing experience.

Warranty:

1-year manufacturer's warranty

Features:

• Exceptionally bright 2,000 lm achieved with 265W high-output NSH lamp
• 4K Projection (3840 x 2160 pixels*) achieved with optical engine featuring e-shift 5 Technology with Multiple Pixel Control image processor
• An ultimate dynamic contrast ratio of 1,600,000:1 and a native contrast ratio of 160,000:1 were achieved with the original D-ILA device and the high-output lamp

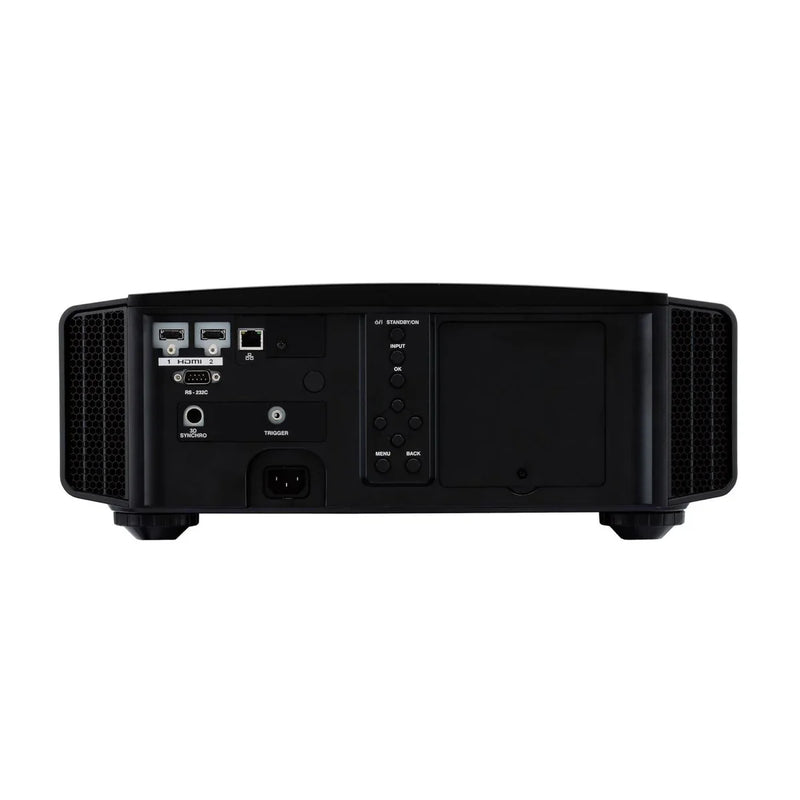

• Connectors: HDMI x 2 (3D, Deep Colour/HDCP 2.2), RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini DIN)
• 6th generation 0.7" Full HD D-ILA (1920 x 1080) device x 3
• 4K signal input (4K60P 4:4:4, 4K60P 4:2:2/36-bit, 4K24P 4:4:4/36-bit)
• NSH 265W
• For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
• Display the MaxCLL and MaxFALL mastering data available for HDR content on some UHD Blu-ray discs
• Compatible with Hybrid Log-Gamma that will come into use for broadcasting applications

• 12-point manual gamma adjustment included in Auto-Calibration Software
• Screen Adjustment Modes: 136 modes
• Pixel Adjust function allows the user to precisely correct color deviation in 1/16-pixel increments; also segments the screen into 121 points for individual adjustment. Two customized settings can be stored in the memory.
• Auto-Calibration Function using an optical sensor** is capable of optimizing essential elements in the image, including color balance, gamma characteristics, color space, and color tracking
• Original Real Colour Imaging Technology has adopted a new filter capable of covering the DCI (digital cinema initiatives) color space for true-to-the-source beautiful 4K images
• Xenon lamp color temperature
• Colour Management System with 6-axis Matrix
• Lens Memory function (10 memories)
• *Resolution is 1920 x 1080 at 3D mode **Exclusive JVC software installed in PC and optical sensor are required. Please visit the JVC website for details. ***Professional calibration to desired screen is performed by trained dealers
• 4K resolution (3840 x 2160) achieved with e-shift 5 Technology including Multiple Pixel Control image processor*
• Resolution: 3840 x 2160 (in 2D)*; 1920 x 1080 (in 3D)
• Automatic Lens Cover
• THX 3D Display Certification to ensure the precise reproduction of picture quality in 2D and 3D content, just as the original filmmaker envisioned.
• ISF C3 (Certified Calibration Controls) mode*** to reproduce excellent picture quality optimized for specific environments.
• Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter
• When Low Latency Mode is active, high-bandwidth signals like 4K with 10bit or 12-bit color depth can be processed without compression
• Clear Motion Drive is compatible with signals up to 4K60P 4:4:4, can reproduce moving images without ghosting or afterimage issues
• Motion Enhance technology reduces residual images and blurring that are often found in fast-moving images by optimally controlling the drive of D-ILA devices
• Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
• To match the trends towards higher resolution and to deliver immersive high-definition 4K images, Multiple Pixel Control has been improved with a new analysis algorithm capable of more accurate diagonal detection between frames for full HD and 4K resolution signals.
• Complies with the latest HDMI/HDCP 2.2 standard to enable full spec 4K signal input up to 4K60P 4:4:4

Benefits:

D-ILA high contrast ratio delivers images full of presence

JVC’s original D-ILA device combined with an optical engine equipped with a wire grid that complements the new high-output lamp results in a high native contrast ratio of 160,000:1*. Input signals are analyzed with an original algorithm that is combined with Intelligent Lens Aperture, which automatically controls the black level of the image to achieve an ultimate dynamic contrast of 1,600,000:1*. The synergetic effect based on the ultimate dynamic range stemming from high brightness delivers a sensational 4K video full of reality.

New 4K e-shift5 technology for improved definition

JVC’s e-shift technology, which shifts sub-frames by 0.5 pixels vertically and horizontally to achieve 4 times the pixel density of the original content, has evolved to meet the growing demand for 4K. Now, e-shift5 technology employs completely new algorithms to realize a dramatic boost in diagonal detection precision, thus achieving even higher definition and improved picture quality.

Improved compatibility with high-resolution HDR content

In addition to HDR Auto Picture mode, JVC D-ILA projectors offer several manual controls – including Picture Tone and Bright/Dark level gamma adjustment – so users can fine-tune the projected image to enhance their viewing experience. Additionally, the latest DLA-X9900BE and DLA-X7900BE/WE feature an all-new color profile that is 20% brighter. Together with Intelligent Lens Aperture, which can be used with HDR10 content, this ensures the most dynamic HDR images ever.

Auto-Calibration Function

Using an optical sensor, precise calibration can be performed in just a few easy steps to match the changes in optical characteristics caused by the installation situation of the projector. Auto-Calibration optimizes all essential elements found in the image, including color balance, gamma characteristics, color space, and color tracking.

High-quality video with Low Latency Mode

D-ILA projectors feature an improved Low Latency Mode* that ensures faster response with PC and game console content. In addition, when this mode is active high-bandwidth signals such as 4K with 10-bit or 12-bit color depth can be processed without compression, resulting in high-quality video performance without any deterioration, regardless of source.

Lens Memory Function
This function stores ten* separate lens adjustments for zoom, shift and focus that can be easily recalled when needed. Memory settings can be switched between each setup via the remote controller.

Technical Specifications:
