Taga Harmony TSW-90 v.4 Active Subwoofer

SKU TAGATSW90V4WEN
Save 16% Save 16%
Original price Rs. 30,900.00
Original price Rs. 30,900.00 - Original price Rs. 30,900.00
Original price Rs. 30,900.00
Current price Rs. 25,990.00
Rs. 25,990.00 - Rs. 25,990.00
Current price Rs. 25,990.00
  • Get in touch for a Discounted Price
  • Authorised Taga Harmony Partner in India
  • Brand New in a Box Unit(s)
  • Price is inclusive of all taxes
  • Official Taga Harmony India Warranty

Country of Origin:

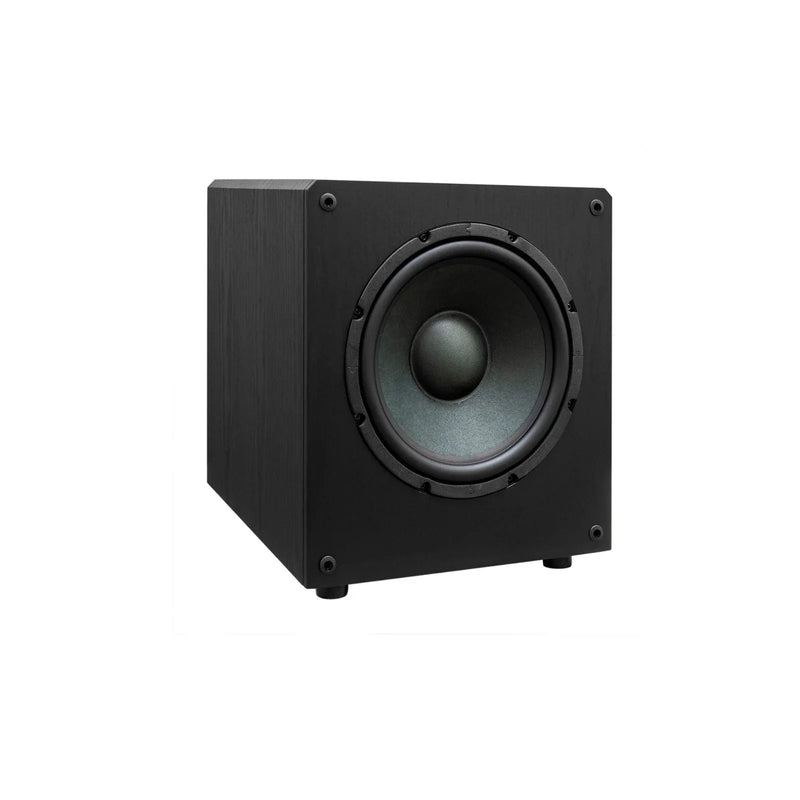

The TSW-90 v.4 is a 10” single driver subwoofer with a built-in high-current amplifier and utilizes a slotted bass port on the rear.

The v.4 version utilizes a redesigned amplifier and power boards with higher-grade components (capacitors etc.) as well as a heavily modified woofer.

The new built-in amplifier delivers slightly higher power output, better
efficiency, and greater current drive which results in lower distortions, more smooth and flat response, and much faster amp operation with significantly reduced operation noises. An integrated clipping limiter maintains the best performance and safe operation of the amp and woofer even at extremely high-volume levels.

The redesigned bass driver can operate in higher amplitude ranges and can faster react to any changes in the audio signal structure.

We changed a regular power cord to a removable IEC type one which provides better power supply filtering and stability and besides gives an option to upgrade your system with a premium audiophile power cable at any time.

The TSW-90 v.4 subwoofers deliver the most powerful, deep bass with staggering definition, location and dynamics never met at this price level before. They are the absolute best buy in subwoofers!

Warranty:

1-year manufacturer's warranty

Taga Harmony TSW-90 Features:

  • Features a 255 mm (10”) paper cone woofer with Ferrum injection-molded chassis, oversized Φ120 magnet, and a heavy-duty voice coil.
  • A high-quality toroidal power transformer provides stable energy.
  • The V.4 version utilizes a redesigned amplifier and power boards with higher-grade components (capacitors etc.) as well as a heavily modified woofer.
  • TSW-90 v.4 subwoofers deliver the most powerful, deep bass with staggering definition, location, and dynamics.
  • Developed TLIE cabinets to increase stiffness.

Taga Harmony TSW-90 Video Review:

CABINETS

Subwoofer cabinet design and built quality are some of the most critical elements influencing sound performance.

We have developed TLIE (Taga Low Interference Enclosures) cabinets to increase stiffness and limit any unwanted resonances of the enclosure. The TLIE cabinets are built with high density and quality MDF boards and stand on solid feet which provide good isolation from the floor.

The beveled top side edges not only look modern and eye-catching but also play a significant role in lowering unwanted vibrations, diffraction, turbulence, and standing waves effect, which can negatively affect the subwoofer’s sound performance.

Acoustic damping material used inside enclosures eliminates the problem of internal standing waves.

Carefully selected high-quality vinyl finishes are very durable, elegant, imitate the natural wood texture, and are very pleasant in touch. The vinyl finishes are neatly applied to cabinets using precise machinery to provide the best looks.

BASS DRIVER

1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
4. Terminal
5. Rigid metal chassis with anti-oxidation surface process
6. ASV bobbin copper wire voice coil
7. Spider
8. Paper cone and rubber surround
9. Paper dust cap


The 255 mm (10”) paper cone woofer is equipped with a Ferrum injection-molded chassis, oversized Φ120 magnet, and a heavy-duty voice coil.
The cone and dust cap are very light and rigid allowing for fast and easy motion.  Elastic rubber surround offers extended cone excursion, which results in increased speed and range.
The driver design supports high power handling and provides deep, strong, precise, and detailed bass.

BASS-REFLEX
Low-turbulence and high-velocity rear slotted port provide exceptional dispersion of low frequencies and are located very close to the floor.

AMPLIFIER
High Current Amplifier utilizes a very well-designed boards layout and high-quality components to provide reliability and the highest possible bass quality.
An integrated clipping limiter maintains the best performance and safe operation of the amp and woofer even at extremely high volume levels.
A high-quality toroidal power transformer provides stable energy which is available at all power levels.

Taga Harmony TSW-90 Technical Specifications:

Design

Active subwoofer, 1 driver

TLIE enclosure

Amplifier power

95W RMS

260W Dynamic Peak

Class A/B

Frequency response

30Hz - 150Hz

Bass-reflex

Single, rear, slotted

Bass driver

255 mm (10”), paper

6ohm

Crossover filter frequency

35Hz - 150Hz (variable)

Phase regulation

0°, 180°

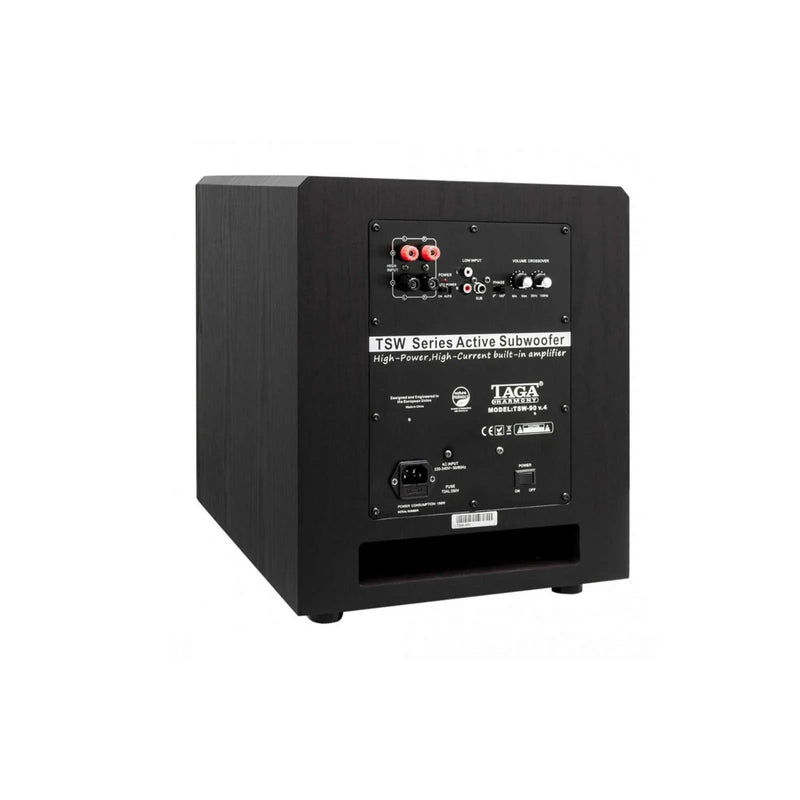

Inputs

1 x Line-level (L/R)

1 x SUB (LFE)

1 x High-level

Features/accessories

Auto On/Off


Single RCA-RCA Subwoofer Cable

Removable IEC power cord

AC power / power consumption

220V-240V 50/60Hz, 150W / <0.5W (Standby Mode)

Dimensions (H x W x D)

38.2 x 33 x 41.6 cm (incl. feet)

Weight

15 kg / pc.
