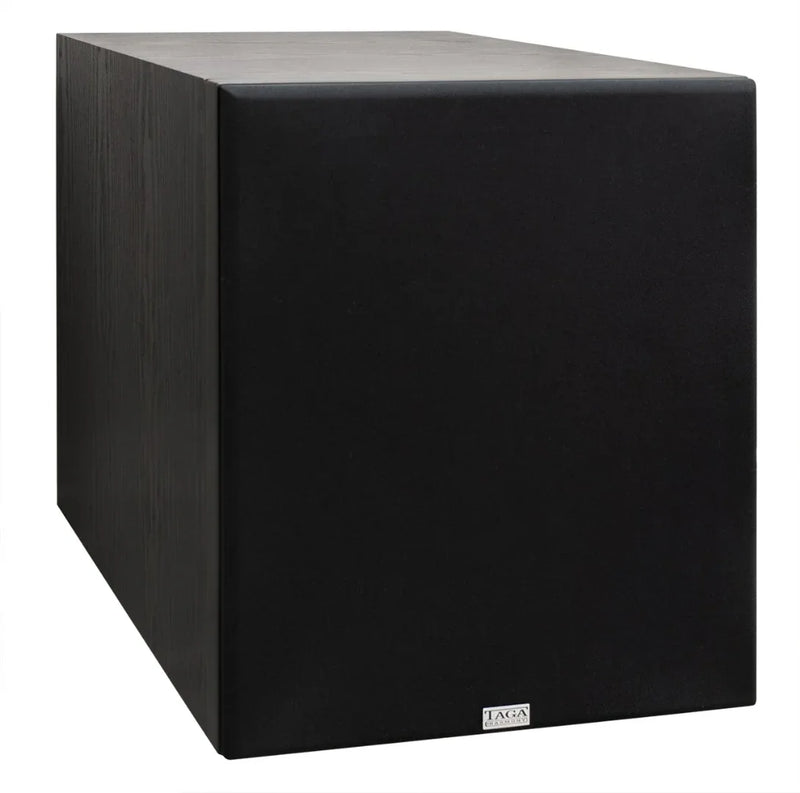

CABINET
A subwoofer cabinet design and built quality are some of the most critical elements influencing sound performance.
We have developed TLIE (Taga Low Interference Enclosures) cabinets to increase stiffness and limit any unwanted resonances of the enclosure.
The TLIE cabinets are built with high density and quality MDF boards and stand on solid feet which provide good isolation from the floor.
Acoustic damping material used inside enclosures eliminates the problem of internal standing waves
Carefully selected high-quality vinyl finishes are very durable, elegant, imitate the natural wood texture, and are very pleasant in touch. The vinyl finishes are neatly applied to cabinets using precise machinery to provide the best looks.

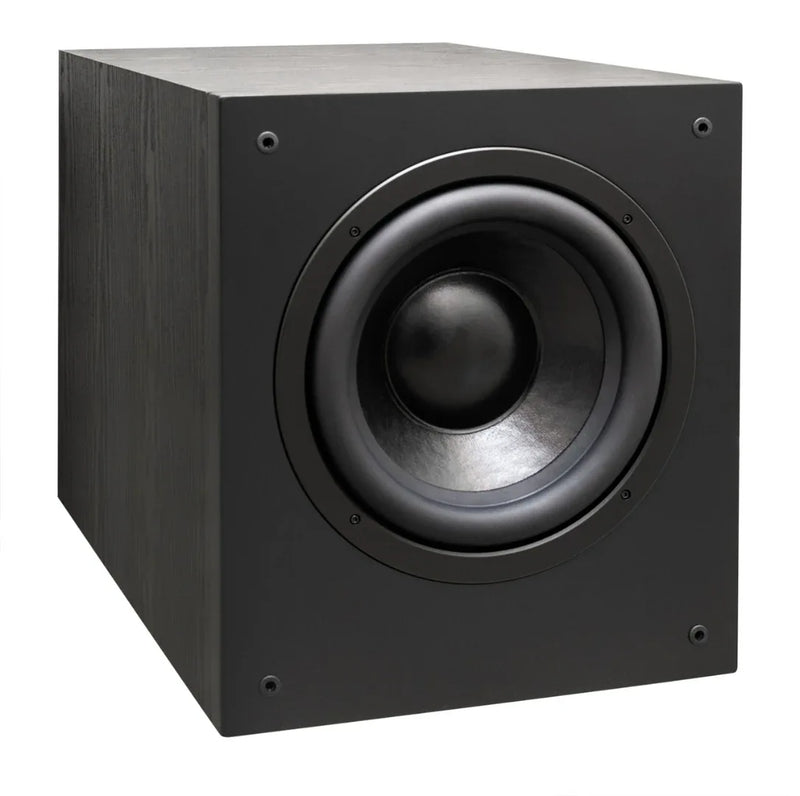

BASS DRIVER
1. T-yoke
2/3. Two oversized ferrite magnets
4. Top plate
5. Copper push-in terminals
6. TSAC rigid metal chassis with anti-oxidation surface process
7. Round wire copper 65mm voice coil
8. Spider
9. Paper cone and rubber surround
10. Paper dust cap
11. EVA gasket
THAW - Taga High Amplitude Woofer offers extended cone excursion, which results in increased speed and range. Bass is fast, strong, low, and dynamic.
TSAC – Taga Super Air Cooling used in the woofer helps quicker and more effective dispersion of internal heat to support high power and volumes.
BASS-REFLEX
Low-turbulence and high-velocity rear slotted port provide exceptional dispersion of low frequencies and are located very close to the floor.

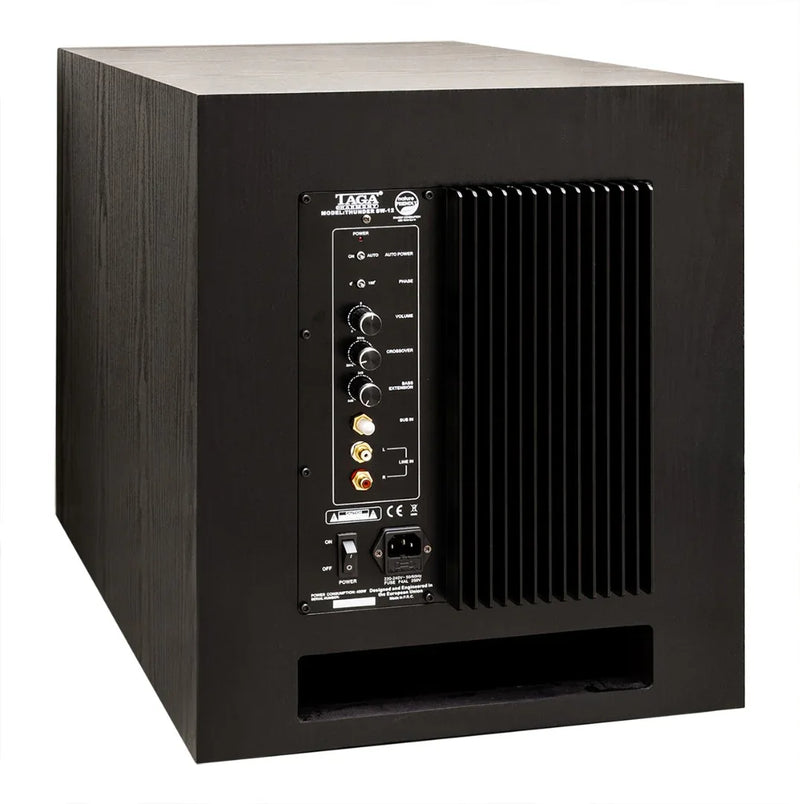

AMPLIFIER
THCA - Taga High Current Amplifier offers huge amounts of raw power, and an oversized, high-performance heatsink quickly dissipates generated heat, increasing the efficiency, and range of the amplifier.
High Current Amplifier utilizes a very well-designed boards layout and high-quality components to provide reliability and the highest possible bass quality. An integrated clipping limiter maintains the best performance and safe operation of the amp and woofer even at extremely high volume levels. High quality, audiophile-class, low-noise, 450 watts toroidal power transformer provides stable energy which is available at all power levels.
Taga Harmony THUNDER SW-12 Technical Specifications:
