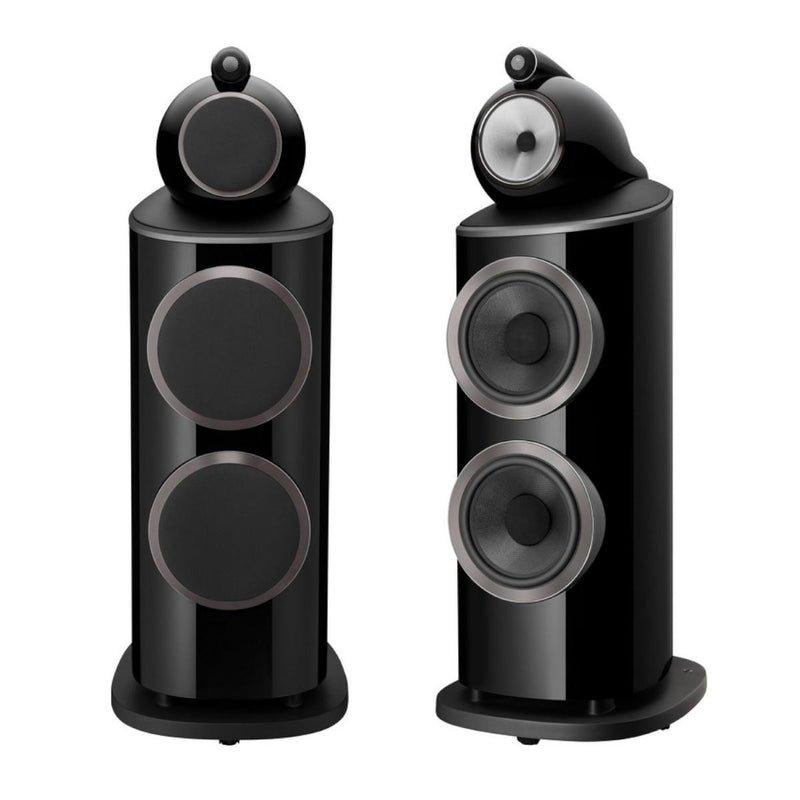

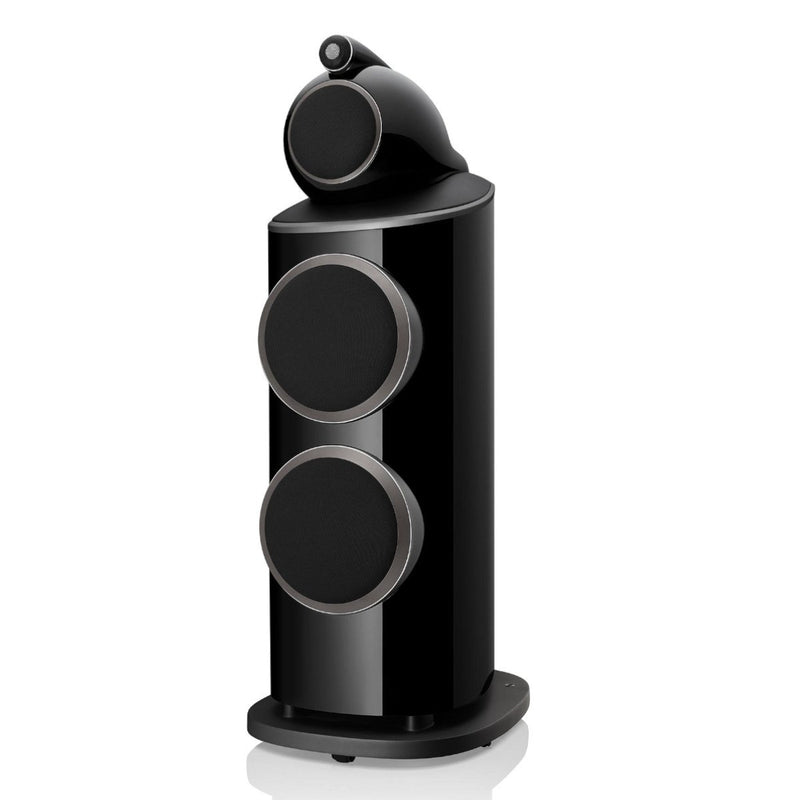

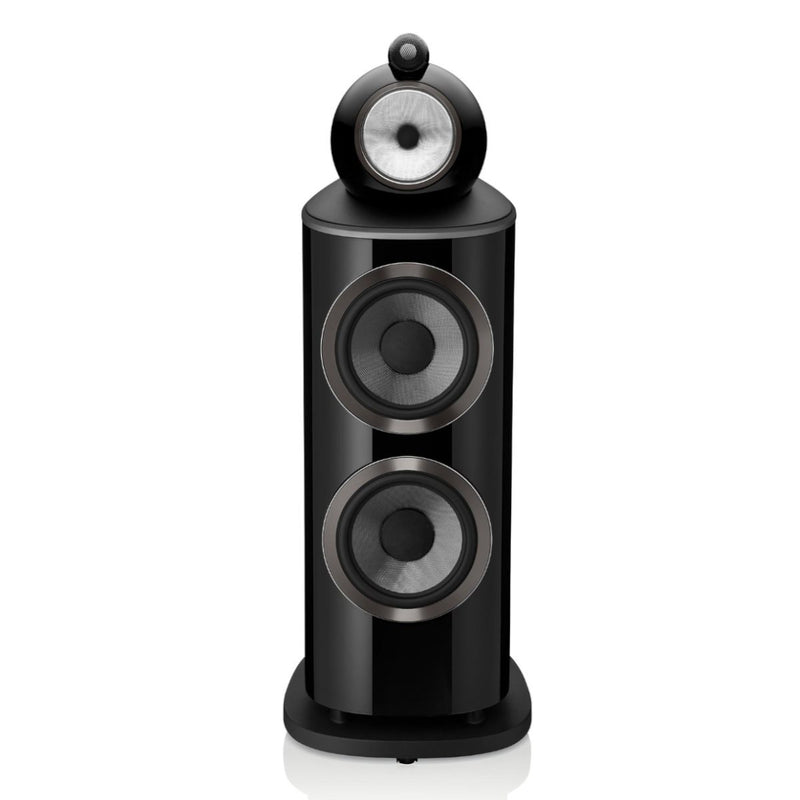

Bowers and Wilkins 801 D4 Tower Speaker (Pair)
Country of Origin:
Country of Origin:
The loudspeaker that sets the standard for other high-end designs will be judged for years to come. Endowed with every new technology the 800 Series Diamond has to offer, the reference-quality 801 D4 is an instant icon.
5-year manufacturers warranty
The ultimate Matrix™
Matrix bracing uses interlocking panels to reinforce loudspeaker cabinet walls in all directions internally, reducing resonance and creating a more believable soundstage. The Matrix assembly in 801 D4 is our best yet, upgraded with extensive aluminum bracing to reinforce key stress points.
Turbine™ Head
The all-aluminum Turbine Head houses our Continuum midrange cone in a stiff and critically damped enclosure to eliminate unwanted resonances. At the same time, it’s decoupled from both the bass enclosure and the tweeter body. The result? The most realistic midrange sound yet.
Biomimetic Suspension
Sometimes, making a big difference takes unconventional thinking. Our new Biomimetic Suspension revolutionizes midrange performance by greatly reducing the unwanted air pressure and coloration that a traditional fabric spider can generate. The result? Midrange transparency you wouldn’t believe.
The science of sound
Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modeling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond so special here.
Size & weight |
|
Dimensions |
Height: 1221mm (48.1 in) Width: 451mm (17.8 in) Depth: 600mm (23.62 in) |
Net weight |
100.60kg (221.8 lb) |
Table header is decorative |
|
Technical details |
|
Technical features |
Diamond tweeter Solid-body Tweeter-on-Top Continuum™ cone FST Anti-Resonance plug Biomimetic Suspension Turbine™ Head Matrix™ Aerofoil™ cone bass units Flow port |
Description |
3-way vented-box system |
Drive units |
1x ø25mm (1in) Diamond dome high-frequency 1x ø150mm (6in) Continuum cone FST midrange 2x ø250mm (10in) Aerofoil cone bass units |
Frequency range |
13Hz to 35kHz |
Frequency response |
15Hz to 28kHz (+/-3dB from reference axis) |
Sensitivity |
90dB (on-axis at 2.83Vrms at 1m) |
Harmonic distortion |
2nd and 3rd harmonics (90dB,1m on-axis) <1% 30Hz – 20kHz <0.3% 100Hz – 20kHz |
Nominal impedance |
8Ω (minimum 3.0Ω) |
Recommended amplifier power |
50W – 1000W into 8Ω on unclipped program |
Max recommended cable impedance |
0.1Ω |
A table header is decorative |
|
Finishes |
|
Cabinet finishes |
Gloss Black White Satin Rosenut Satin Walnut |
Grille finishes |
Black Grey Black Grey |
