JBL Stage 260CDT 6.5" Dual-Tweeter Stereo In-Ceiling Speaker

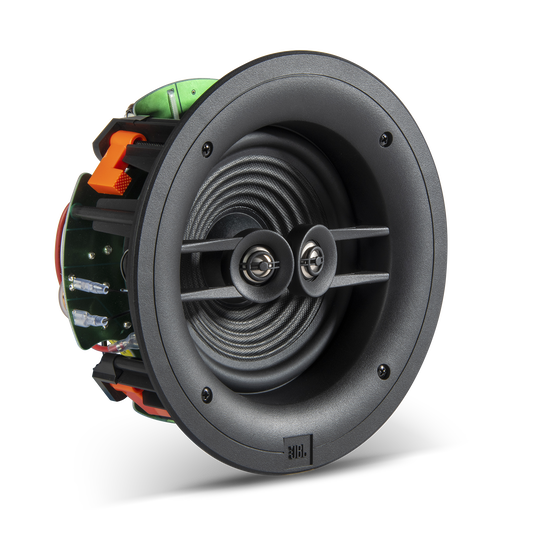

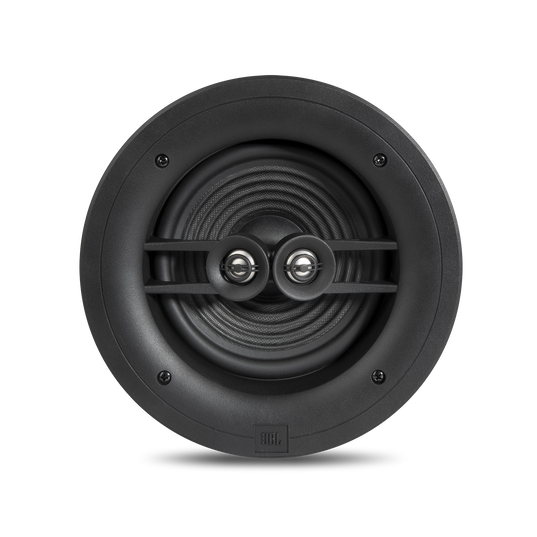

The Stage 260CDT is the single-stereo in-ceiling loudspeaker of JBL's Stage Architectural range, sold as a single piece. It pairs a dual voice coil 6.5 inch polycellulose cone woofer with two 3/4 inch aluminium dome tweeters, each with an acoustic lens waveguide. That layout lets one speaker reproduce both the left and right channels at once, so a single unit delivers stereo sound from one point in the ceiling.

This is the speaker for places where you can only fit one. A hallway, a walk-in wardrobe, an ensuite or a small kitchen rarely has room or symmetry for a proper stereo pair, and a normal single speaker plays only one channel there. The 260CDT takes the left and right feed into its dual voice coil woofer and splits the highs across its two tweeters, giving a sense of stereo width from a single cutout. It uses the same clean-install approach as the rest of the range, with a zero bezel paintable grille, a rigid baffle with acoustic smoothing, the XL-2 clamp system for material up to 2 inches thick, and its shallow 106 mm mounting depth is the least demanding in the ceiling line.

Key Features

• Single speaker delivers stereo from one ceiling point
• Dual voice coil 6.5 inch polycellulose cone woofer
• Two 3/4 inch aluminium dome tweeters with acoustic lens
• Takes left and right channels into one unit

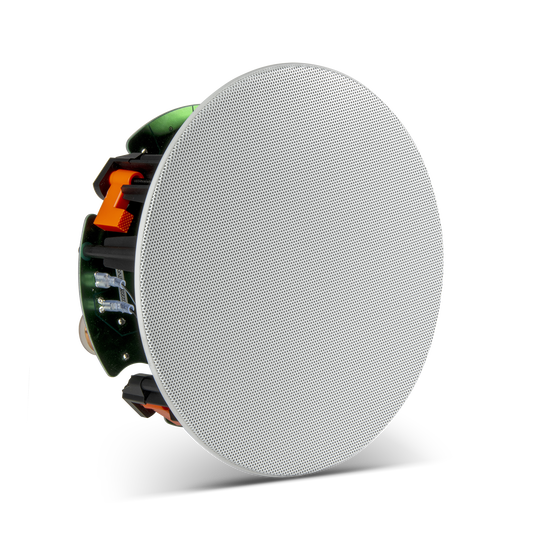

• Zero bezel metal grille installs flush and paintable
• Rigid baffle with acoustic smoothing for driver integration

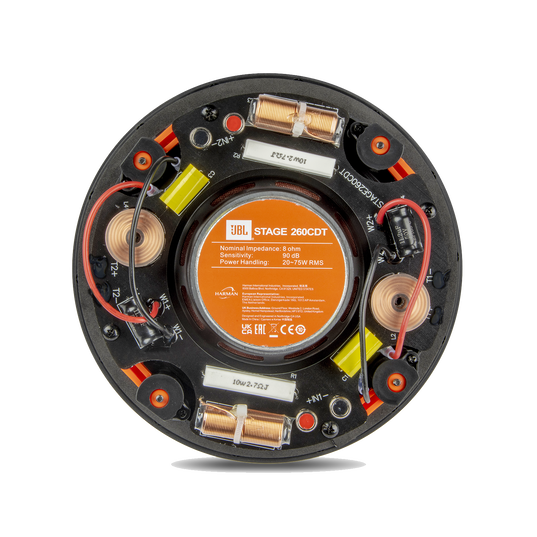

• Premium air-core inductor and mylar capacitor crossover
• XL-2 system fits ceiling up to 2 inches thick
• Shallow 106 mm mounting depth for tight voids
• Nickel-plated spring-loaded connectors for fast wiring
• 90 dB sensitivity into an 8 ohm load
• Ideal for hallways, bathrooms and small rooms

Warranty

Why Consider the JBL Stage 260CDT

Stereo needs two speakers spaced apart, but plenty of spaces cannot take a pair. A hallway is too narrow to separate them usefully, a bathroom may have room for only one cutout, and in a small utility space a second speaker is wasted. The 260CDT answers this by putting a stereo speaker in a single body: the dual voice coil woofer accepts both channels and the two tweeters spread the treble, so you get left and right information from one point rather than a mono feed. It is the sensible choice for whole-house audio zones where one speaker per room is the practical limit, and it installs as cleanly as every other model in the range.

Ideal For

• Hallways and corridors too narrow for a stereo pair
• Bathrooms, ensuites and walk-in wardrobes
• Small kitchens and utility rooms
• Whole-house audio zones limited to one speaker
• Ceilings with shallow voids needing minimal depth
• Custom installers wanting stereo from a single cutout

What's in the Box

• One JBL Stage 260CDT in-ceiling loudspeaker
• Zero bezel paintable metal grille
• Cutout template
• Installation guide and documentation

Technical Specifications
