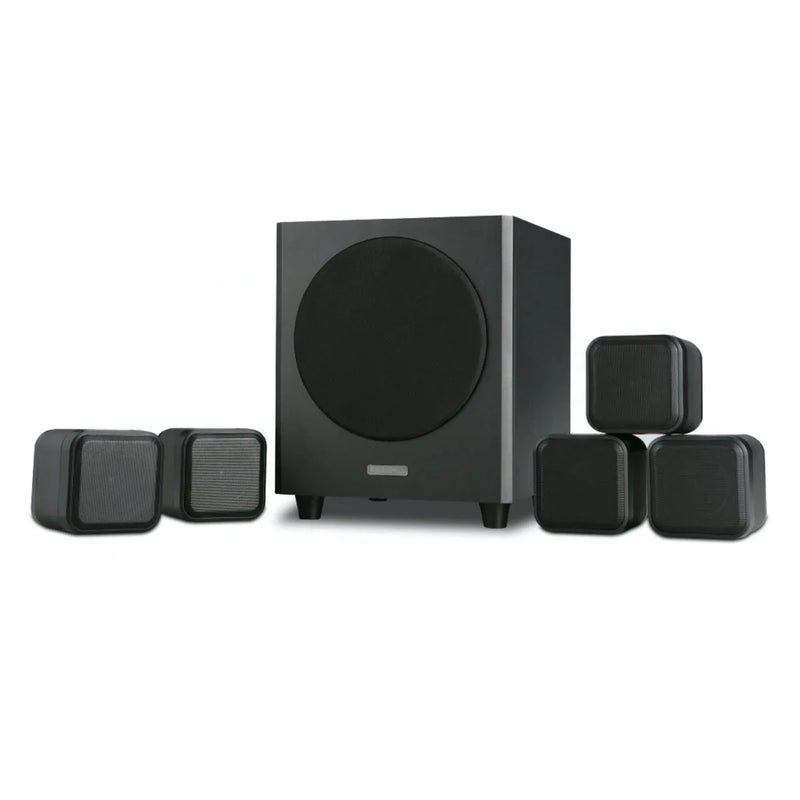

Continuing the success of the M-CUBE series we, at Mission, bring to you this latest version which is sure to be a favourite. This is the all-new M-CUBE+SE 5.1 surround sound system from the innovative M-CU BE range.

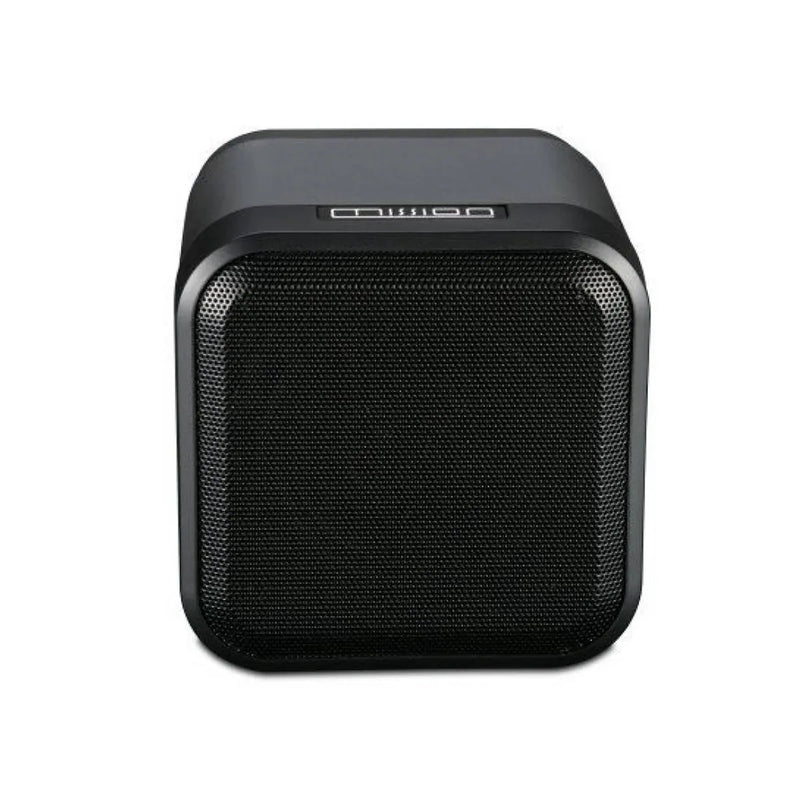

The M-CUBE+SE is designed specifically to meet the requirements of the home user who requires a fuss-free solution to Cinema and Surround Sound music in the home. Installation is simple thanks to the small, elegant appearance of the M-CUBE+SE satellite speakers, the multiple mounting arrangements, and the wide dispersion characteristics.
Features:
DRIVERS
The full-range driver in each M-CUBE+SE satellite speaker not only covers the frequency range 120Hz to 20kHz, output by an AV processor set to ‘Small’ but also disperses its output over a wide listening area.
The M-CUBE+SE subwoofer is a powerhouse accepting LFE output from the AV processor and achieving a 35 - 150Hz power spectrum with exceptional dynamics and control. This is the result of using a 200mm long-throw, high linearity sub-bass unit driven by a new 150 Watt Class D amplifier equipped with precisely aligned equalization for a clear and powerful bass rendition that matches the satellites.
With easy-install on-wall or shelf mounting, the new Mission M-CUBE+SE is the solution for anyone looking for hi-fi quality sound from AV and music sources who require a versatile and discrete loudspeaker system.
Wall Bracket not Included. (Extra @ INR 800/- per bracket)
Technical Specifications:
|
GENERAL DESCRIPTION
|
Wide bandwidth bookshelf/surround speaker
|
|
ENCLOSURE TYPE
|
Closed box
|
|
TRANSDUCER DRIVER
|
3” Full range
|
|
AV SHIELD
|
No
|
|
SENSITIVITY (2.83V@1M)
|
85 dB
|
|
RECOMMENDED AMPLIFIER POWER
|
40-80 W
|
|
NOMINAL IMPEDANCE
|
8 Ohms
|
|
MINIMUM IMPEDANCE
|
3.6 Ohms
|
|
FREQUENCY RESPONSE (+/-3dB)
|
120Hz-20kHz
|
|
BASS EXTENSION (-6dB)
|
110 Hz
|
|
CABINET VOLUME (in lites)
|
0.52 L
|
|
DIMENSION (H x W x D) in mm
|
100 x 100 x 103
|
|
CARTON SIZE (L x W x H) in mm
|
390 x 390 x 525 (packed in system, including subwoofer and 5 pcs satellite speakers)
|
|
NET WEIGHT (Kg)
|
12 Kg (Packed in a system, including subwoofer and 5 pcs satellite speakers)
|
|
GROSS WEIGHT (Kg)
|
14 Kg (Packed in a system, including subwoofer and 5 pcs satellite speakers)
|
|
FINIS COLOUR
|
Garphite black & ivory
|
|
STANDARD ACCESSORIES
|
Desk stand, user manual, guarantee certificate
|
SUBWOOFER SPECIFICATIONS
|
GENERAL DESCRIPTION
|
Active closed-box subwoofer system
|
|
ENCLOSURE TYPE
|
Closed box
|
|
TRANSDUCER COMPLEMENT
|
8” (200mm) long throw bass driver
|
|
INPUT SENSITIVITY
|
200mV for maximum output
|
|
AMPLIFIER POWER OUTPUT
|
70W
|
|
PEAK POWER OUTPUT
|
150W
|
|
PEAK SPL
|
110 dB
|
|
FREQUENCY RESPONSE
|
40 Hz - 150 Hz
|
|
BASS EXTENSION (-6dB)
|
35 Hz
|
|
CROSSOVER FREQUENCY
|
35 Hz - 150 Hz
|
|
SIGNAL TO NOISE RATIO (s/n)
|
>85 dB
|
|
SPECIAL FEATURES
|
Phase inversion, Auto on/off, Low pass filter frequency adjustment
|
|
DIMENSION (H x W x D) in mm
|
328 x 268 x 294
|
|
CARTON SIZE (L x W x H) in mm
|
390 x 390 x 525 (packed in system, including subwoofer and 5 pcs satellite speakers)
|
|
NET WEIGHT (Kg)
|
12 Kg (Packed in a system, including subwoofer and 5 pcs satellite speakers)
|
|
GROSS WEIGHT (Kg)
|
14 Kg (Packed in a system, including subwoofer and 5 pcs satellite speakers)
|
|
FINIS COLOUR
|
Garphite black & ivory
|
|
STANDARD ACCESSORIES
|
Desk stand, user manual, guarantee certificate
|
