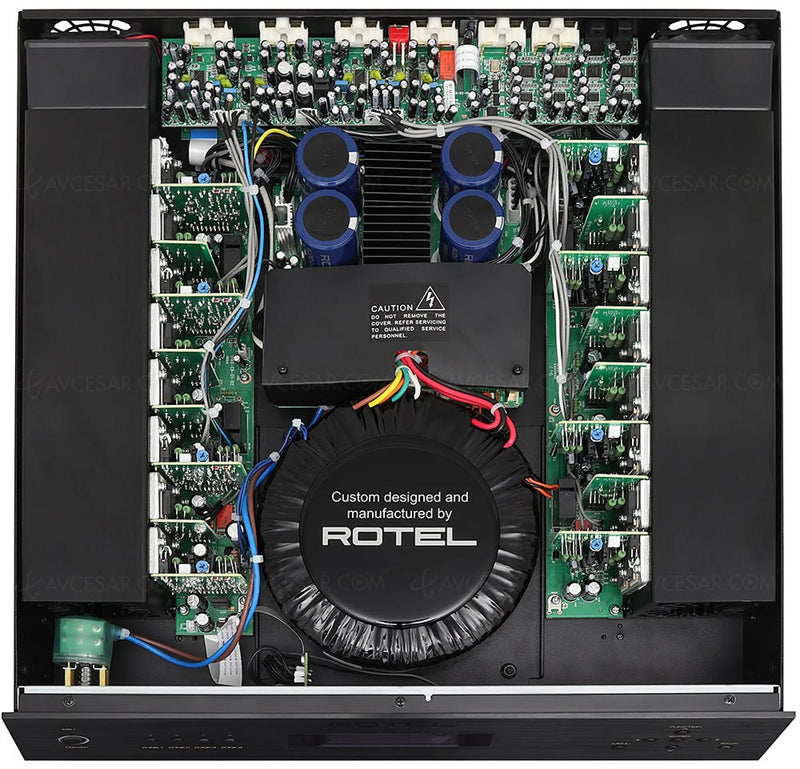

The Rotel C8 is an 8-channel Class AB custom installation amplifier delivering 50 watts per channel into 8 ohms, or 70 watts per channel into 4 ohms, with a bridged option of 140 watts into 4-ohm loads. An oversized in-house manufactured toroidal transformer drives sixteen output devices across the eight channels.

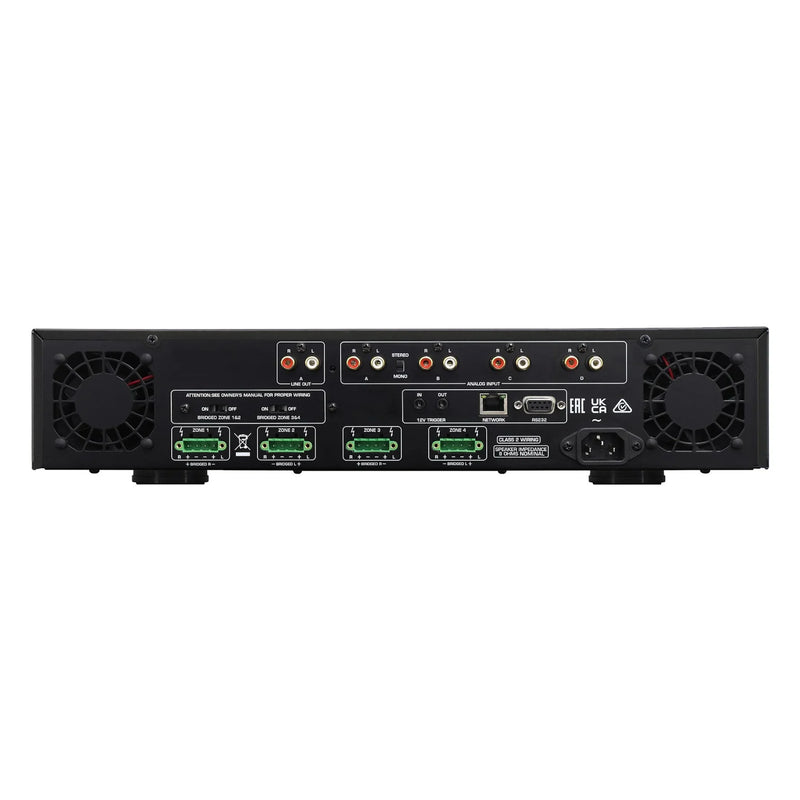

Four analogue inputs are matrixed to all zones, and a front panel display with independent volume, bass and treble controls per zone gives local control at the amplifier. Control system integration is available through IP and RS232 interfaces alongside a 12-volt trigger, and the custom 2U chassis needs no top or bottom clearance when rack mounting.
Key Features
- 8 channels at 50 watts per channel into 8 ohms
- 70 watts per channel into 4 ohms, bridgeable to 140 watts
- 4 analogue inputs matrixed to all zones

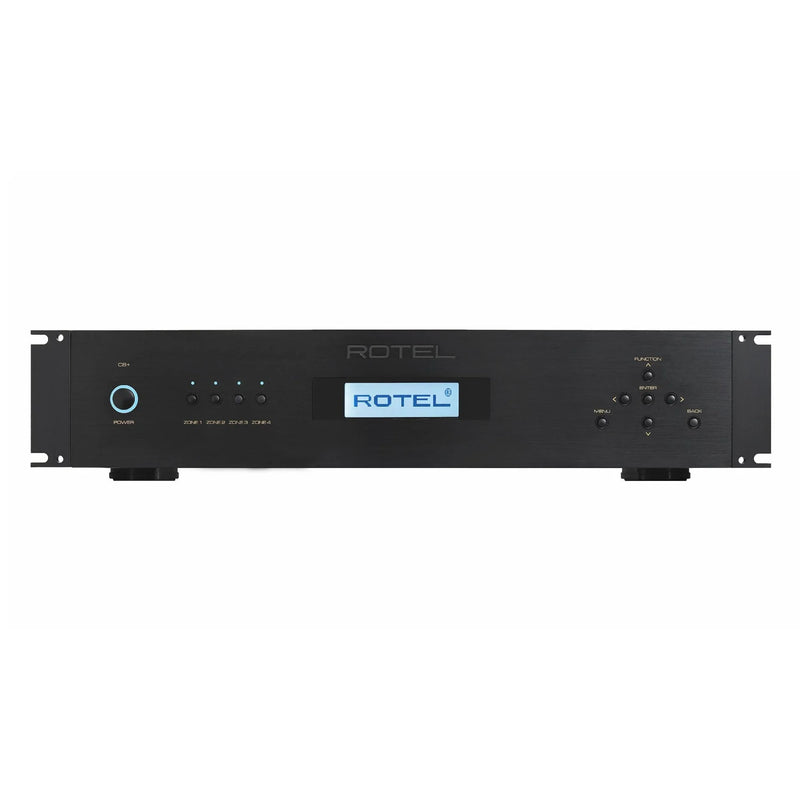

- Front panel display with independent per-zone volume, bass and treble
- IP and RS232 control system integration
- 12-volt trigger input
- Custom 2U height needs no top or bottom rack clearance
- Oversized in-house manufactured toroidal transformer
- Sixteen output devices across eight channels
- Purpose-built for custom installation
Warranty
This product comes with a 2-year manufacturer warranty.
Why Consider the Rotel C8
The C8's 2U height with no top or bottom clearance requirement is built specifically for dense equipment racks, where every rack unit counts. Matrixing four analogue inputs to all eight zones, with independent volume, bass and treble per zone, covers a straightforward multi-room audio installation without needing a separate matrix switcher.
Ideal For
- Dense equipment racks in custom installations
- Multi-room audio systems with several independent zones
- Installations using IP or RS232 control automation
- Analogue-source distributed audio without a separate processor
What's in the Box
- Rotel C8 8-Channel Custom Installation Amplifier
- Power cable
- Owner's manual
Downloads
Technical Specifications
| Amplifier Performance |
| Continuous Power Output, 8 Channels, 8 ohms |
50 W per channel |
| Maximum Power Output, 8 Channels, 4 ohms |
70 W per channel |
| Bridged Power Output, 4 ohms |
140 W |
| Total Harmonic Distortion |
Less than 0.1% |
| Intermodulation Distortion |
Less than 0.1% |
| Frequency Response |
10 Hz - 100 kHz (+0 dB, Ā±0.5 dB) |
| S/N Ratio (IHF-A) |
100 dB |
| Damping Factor (20 Hz - 20 kHz, 8 ohms) |
80 |
| Crosstalk / Separation |
Greater than 50 dB |
| Tone Controls |
Ā±10 dB at 100 Hz / 10 kHz |
| Inputs and Control |
| Input Sensitivity, Line |
0.3 V |
| Input Impedance, Line |
31 kilohms |
| Input Overload, RCA Line |
2.8 V |
| Analogue Inputs |
4, matrixed to all zones |
| Control Integration |
IP and RS232, 12-volt trigger |
| General |
| Dimensions (W x H x D) |
430 x 97 x 414 mm |
| Front Panel Height |
88.1 mm (2U) |
| Power Requirements |
230 V, 50 Hz |
| Power Consumption |
570 W |
| Standby Power Consumption |
Less than 0.5 W normal, less than 2 W network |
| Net Weight |
16.7 kg |
| BTU Rating |
1537 BTU/h |
