Rotel C8+ 8-Channel Power Amplifier

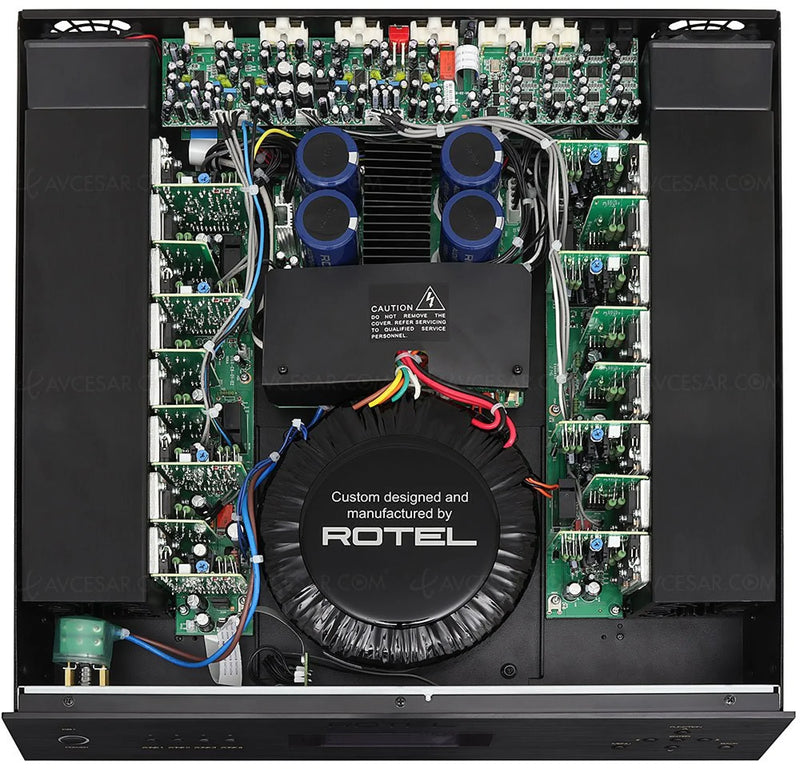

The Rotel C8+ is an 8-channel Class AB custom installation amplifier delivering 100 watts per channel into 8 ohms, or 150 watts per channel into 4 ohms, with a bridged option of 300 watts into 4-ohm speakers. It carries Rotel's proprietary amplification technology in a compact 2U rack-mount chassis for professional-grade multi-room performance.

For maximum installation flexibility, the C8+ adds four digital inputs alongside four analogue, all matrixed to every zone, doubling the C8's source options. Front panel display and controls provide source selection with independent volume, bass and treble settings per zone, and control system integration is available via IP and RS232 interfaces plus a 12-volt trigger.

Key Features

• 8 channels at 100 watts per channel into 8 ohms
• 150 watts per channel into 4 ohms, bridgeable to 300 watts

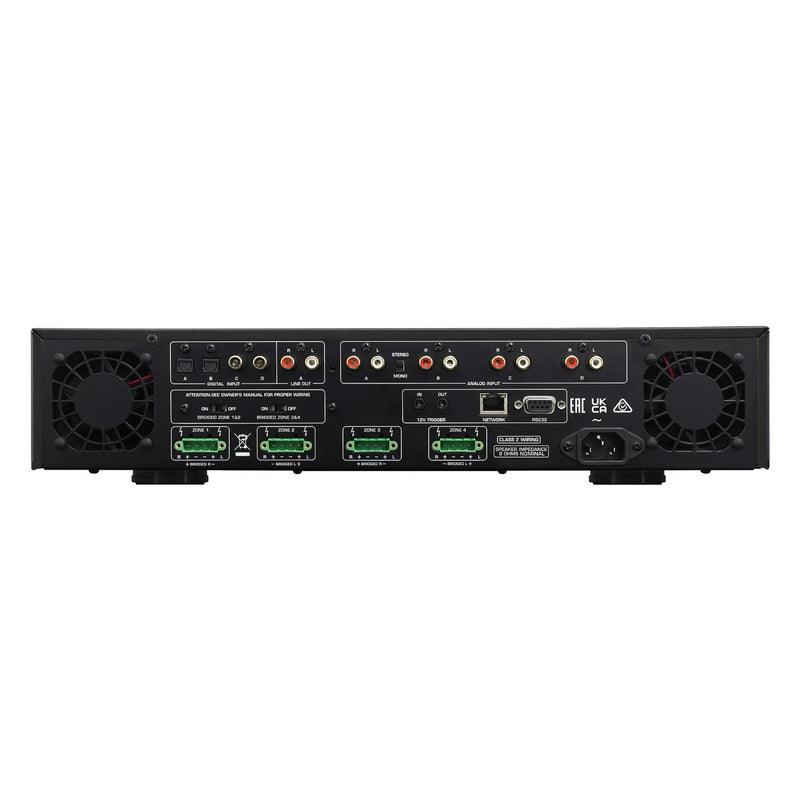

• 4 analogue and 4 digital inputs, all matrixed to every zone
• Digital inputs support SPDIF up to 24-bit/192 kHz

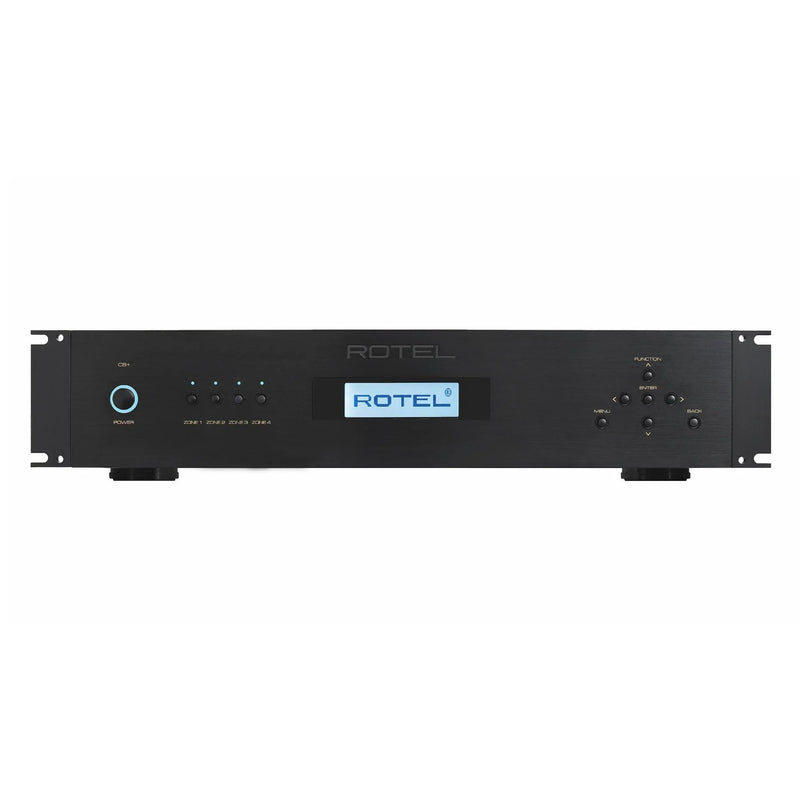

• Front panel display with independent per-zone volume, bass and treble
• IP and RS232 control system integration
• 12-volt trigger input
• Custom 2U height needs no top or bottom rack clearance
• Rotel's proprietary amplification technology
• Purpose-built for professional custom installation

Warranty

This product comes with a 2-year manufacturer warranty.

Why Consider the Rotel C8+

The C8+ doubles the C8's power per channel and adds four digital inputs, making it the choice for installations mixing streaming or digital sources with analogue ones across the same set of zones. The extra headroom into 4-ohm loads also gives more flexibility with loudspeaker selection across a large multi-room system.

Ideal For

• Larger custom installations needing more power per zone
• Systems mixing analogue and digital sources across zones
• Dense equipment racks needing 2U custom installation amplification
• Installations using IP or RS232 control automation

What's in the Box

• Rotel C8+ 8-Channel Custom Installation Amplifier
• Power cable
• Owner's manual

Downloads

• Owner's Manual (PDF)
• Specification Sheet (PDF)

Technical Specifications
