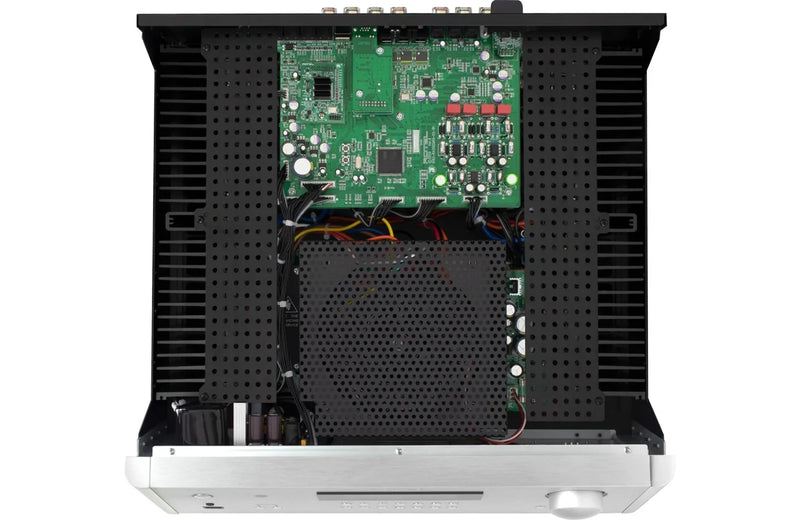

The Rotel RA-1592MKII is a Class AB integrated amplifier delivering 200 watts per channel into 8 ohms and 350 watts into 4 ohms. An in-house manufactured toroidal transformer feeds an array of slit-foil capacitors, giving the amplifier the reserve current for rich, controlled bass energy, backed by a damping factor of 600.
A 32-bit/384 kHz DAC handles digital conversion for coaxial and optical inputs and PC-USB, the latter supporting MQA decoding, while a moving magnet phono stage covers vinyl and aptX and AAC Bluetooth covers wireless sources. Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers make the RA-1592MKII straightforward to integrate with control systems.
Key Features
- 350 watts per channel Class AB into 4 ohms
- In-house manufactured toroidal transformer and slit-foil capacitors
- 32-bit/384 kHz DAC with MQA decoding
- Moving magnet phono stage for turntable connection
- aptX and AAC wireless Bluetooth streaming
- Selectable A-B speaker outputs

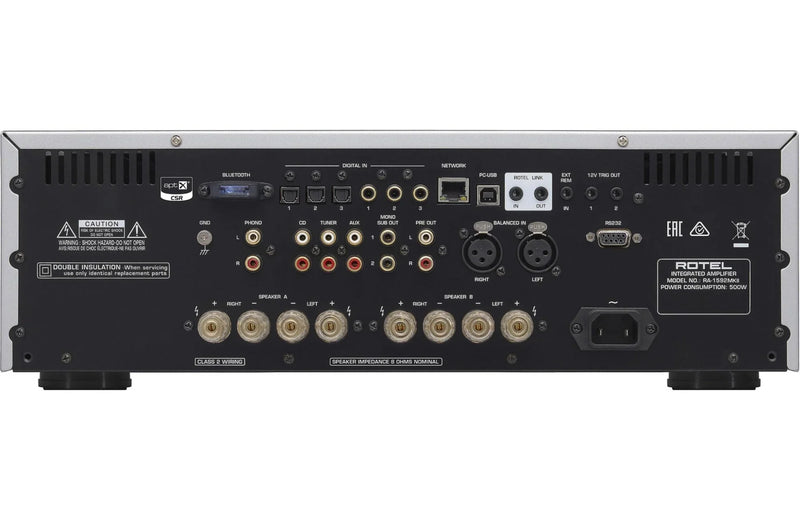

- RS232, Ethernet and 12V trigger for control integration
- Damping factor of 600
- Certified Roon Tested for reliable software integration

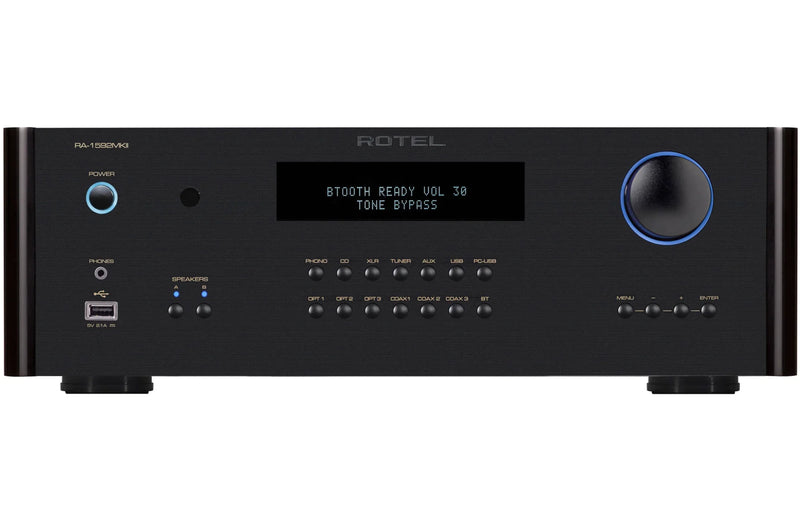

- Available in black and silver finishes
Warranty
This product comes with a 2-year manufacturer warranty.
Why Consider the Rotel RA-1592MKII
At the top of Rotel's RA integrated amplifier range, the 1592MKII pairs genuine 350 watt reserves into 4 ohms with the control system connectivity that custom installers look for. The selectable A-B speaker outputs allow a second pair of loudspeakers to be switched in for a different room, and the damping factor of 600 is high even by the standards of amplifiers well above its price.
Ideal For
- Medium to large rooms with demanding loudspeakers
- Custom installations using RS232, Ethernet or 12V trigger control
- Systems switching between two pairs of loudspeakers
- Vinyl and high-resolution digital sources in one amplifier
What's in the Box
- Rotel RA-1592MKII Integrated Amplifier
- Remote control
- Power cable
- Owner's manual
Technical Specifications
| Amplifier Performance |
| Maximum Power Output |
350 W per channel, 4 ohms |
| Continuous Power Output |
200 W per channel, 8 ohms |
| Total Harmonic Distortion |
Less than 0.008% |
| Intermodulation Distortion |
Less than 0.03% (60 Hz:7 kHz, 4:1) |
| Damping Factor |
600 |
| Frequency Response and Noise |
| Line Level |
10 Hz - 100 kHz (±0.5 dB) |
| Digital Inputs |
10 Hz - 90 kHz (±2 dB) |
| Phono Input |
20 Hz - 20 kHz (±0.5 dB) |
| S/N Ratio, Line |
103 dB |
| S/N Ratio, Digital |
102 dB |
| S/N Ratio, Phono |
80 dB |
| Input Sensitivity and Impedance |
| Input Sensitivity, RCA |
340 mV |
| Input Sensitivity, XLR |
540 mV |
| Input Sensitivity, Phono MM |
5.2 mV |
| Input Impedance, RCA / XLR |
100 kilohms |
| Input Impedance, Digital |
75 ohms |
| Input Impedance, Phono MM |
47 kilohms |
| Input Overload, RCA |
3.5 V |
| Input Overload, XLR |
5.5 V |
| Input Overload, Phono |
52 mV |
| Digital Section |
| Digital to Analogue Converter |
32-bit / 384 kHz |
| Coaxial / Optical Inputs |
LPCM up to 24-bit/192 kHz |
| PC-USB |
Class 1 up to 24-bit/192 kHz, Class 2 up to 32-bit/384 kHz |
| MQA |
MQA up to 24-bit/384 kHz |
| Bluetooth |
aptX and AAC |
| Roon |
Roon Tested |
| Outputs |
| Preout Level |
1.9 V |
| Output Impedance |
100 ohms |
| General |
| Dimensions (W x H x D) |
431 x 144 x 425 mm |
| Front Panel Height |
132.6 mm |
| Power Requirements |
230 V, 50 Hz |
| Power Consumption |
500 W |
| Standby Power Consumption |
Less than 0.5 W |
| Net Weight |
17.63 kg |
| BTU Rating |
1239 BTU/h |
