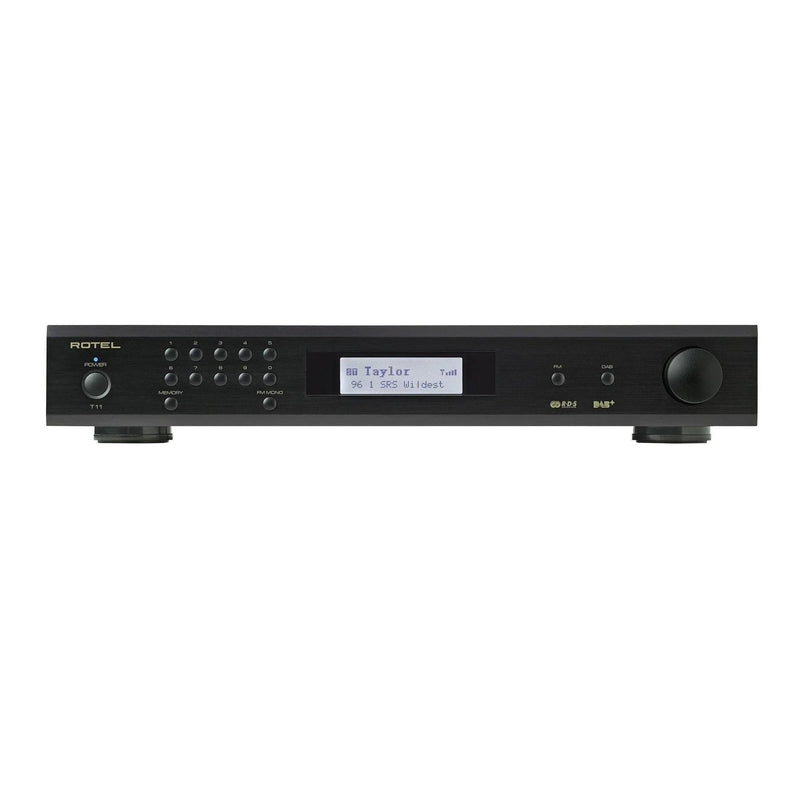

The Rotel T11 is an FM/DAB+ tuner continuing a tradition of tuner design at Rotel dating back to the 1960s. It covers both classic analogue FM broadcasts and newer DAB+ digital radio services, with up to 30 station presets available for each band.
RDS support on FM shows station and programme information, and the DAB+ section covers Band III with a 75 ohm F-type antenna input shared with the FM section. A remote control is included for preset recall and station browsing from a listening position.
Key Features
- Combined FM and DAB+ digital radio tuner
- Up to 30 station presets per band
- RDS support for FM station and programme data
- 75 ohm F-type antenna input
- DAB+ Band III coverage
- Remote control included for preset recall
- Frequency response to 15 kHz on FM
- Low harmonic distortion on both FM and DAB+
- Compact chassis matching Rotel's A-series amplifiers

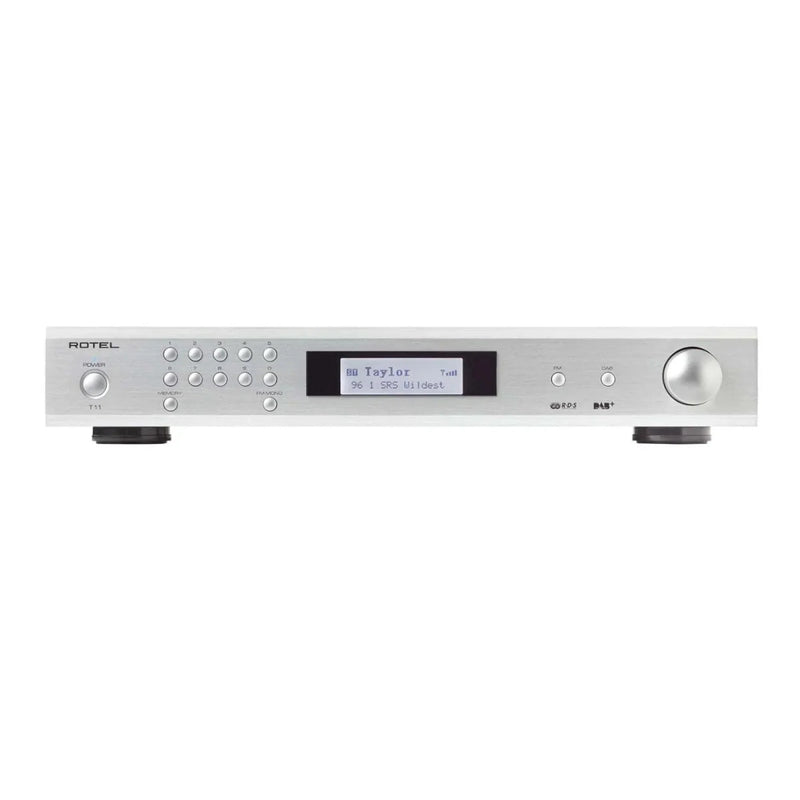

- Available in black and silver finishes
Warranty
This product comes with a 2-year manufacturer warranty.
Why Consider the Rotel T11
For listeners who still value broadcast radio, a dedicated tuner delivers cleaner reception and audio quality than an all-in-one receiver's built-in tuner section, and the DAB+ coverage keeps it relevant as broadcasters move away from analogue FM. Thirty presets per band is enough to cover a full range of local and national stations without repeatedly re-tuning.
Ideal For
- Listeners who regularly follow FM or DAB+ radio stations
- Pairing with any Rotel A-series or RA-series amplifier
- Households transitioning from analogue to digital radio
- Systems built around a range of everyday listening sources
What's in the Box
- Rotel T11 FM/DAB+ Tuner
- Remote control
- Antenna
- Power cable
- Owner's manual
Downloads
Technical Specifications
| DAB+ Performance |
| Sensitivity |
-80 dBm |
| Tuning Range |
Band III (174 - 240 MHz) |
| Maximum Audio Data Rate |
224 kbps |
| Frequency Response |
20 Hz - 20 kHz (±1 dB) |
| Analogue Output (at 0 dBfs) |
2.1 V |
| FM Performance |
| Usable Sensitivity |
22.2 dBf |
| 50 dB Quieting Sensitivity (Mono) |
27.2 dBf |
| S/N Ratio at 65 dBf, Mono |
63 dB |
| S/N Ratio at 65 dBf, Stereo |
60 dB |
| Harmonic Distortion at 65 dBf, Mono |
0.2% |
| Harmonic Distortion at 65 dBf, Stereo |
0.3% |
| Frequency Response |
10 Hz - 15 kHz (±3 dB) |
| Stereo Separation at 100 Hz |
40 dB |
| Stereo Separation at 1 kHz |
37 dB |
| Output Level |
1 V |
| General |
| Antenna Input |
75 ohms, F-type connector (shared FM/DAB+) |
| Station Presets |
Up to 30 per band |
| Dimensions (W x H x D) |
430 x 73 x 330 mm |
| Front Panel Height |
60 mm |
| Power Requirements |
230 V, 50 Hz |
| Power Consumption |
10 W |
| Standby Power Consumption |
Less than 0.5 W |
| Net Weight |
4.3 kg |
| BTU Rating |
17 BTU/h |
