Precision engineered dual edge wound voice coils ensure stable transfer of electro-magnetic current to the 15-inch driver for authoritative output and exacting driver control.
A revolutionary new amplifier platform with technology adapted from the flagship SVS subwoofers. Rated conservatively at 2,000 Watts Continuous, 5,000+ Watts Peak, the innovative design maximizes driver potential with refined behavior and pristine response at any volume.
- High Current Output of Fully Discrete MOSFET transistors with efficiency of Class D Amplifier generates immense sonic force with precise control for outstanding real-world performance at all volumes.
- Each monoblock amp drives one of the dual voice coils within the motor to assert pinpoint control and maximize power fed to the driver
- Eight 60 Amp 200 Volt MOSFET transistors deliver extreme high current for reference-level output with maximum efficiency
Extreme Subwoofer Intelligence - 295 MHz Analog Devices DSP
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer.
- Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction
- Monitors every function of the amplifier to stabilize AC voltage delivery to the power supply to maintain consistent peak output
- Multi-point thermal, voltage, and current monitoring systems ensures maximum output and efficiency
- Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and pristine fidelity.
SVS Subwoofer Auto EQ Room Correction
Achieves pristine fidelity by resolving acoustic issues caused by your room in a few easy steps.
- Automatically tunes subwoofer output using your smartphone microphone or an external microphone and the SVS subwoofer app
- Applies equalization, capitalizes on available room gain, and shapes in-room frequency response at the main listening positions for optimal in-room performance
- Will be available soon via an over-the-air SVS Subwoofer Control App update

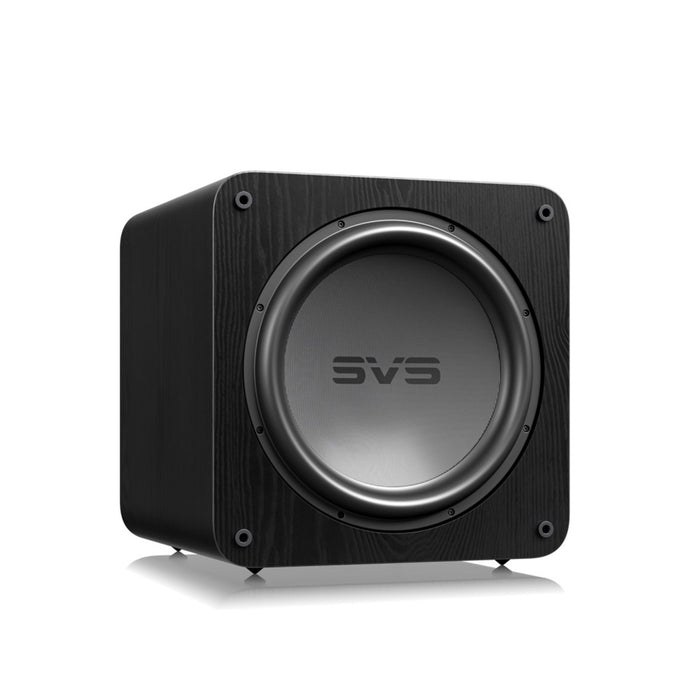

Acoustically Inert, Rigidly Braced Sealed Box Cabinet Design
Sealed cabinet design results in tighter, more musical bass and makes it significantly more compact than ported box subwoofers with similar specs.
- Double-thick 2-inch MDF front baffle and rigid internal bracing to support the massive drive unit and to ensure an acoustically inert environment.
- Highly reinforced internal design and acoustic insulation eliminates all coloration or resonance from the cabinet, even when the deepest low frequencies are played at reference volume.

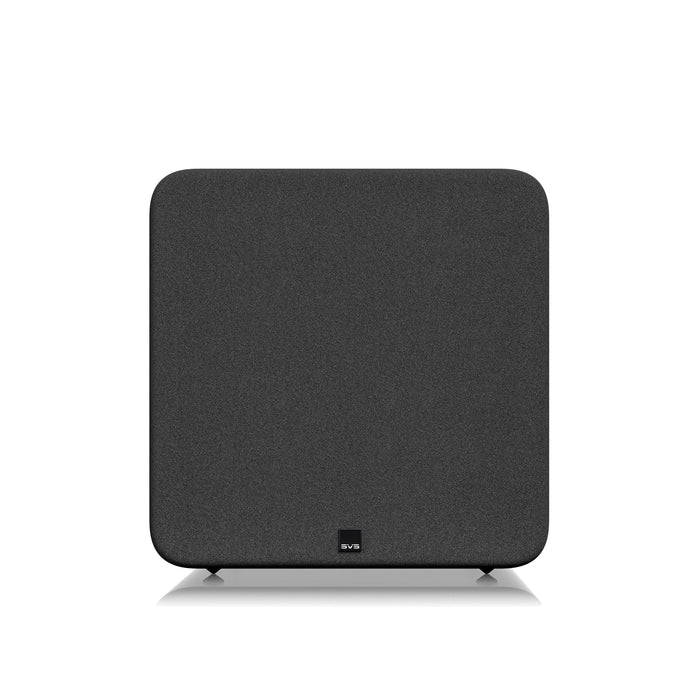

- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity.
- Custom elastomer feet reduce noise artifacts within a room.
Technical Specification :
| Subwoofer Finish |
Piano Gloss Black and Black Ash options |
| Driver |
Front Firing 15-inch high-excursion driver |
| Amplifier Interface |
Rear panel OLED with “Display Flip” function for fast and direct control |
| Grille |
Protective non-resonant extra-thick ABS grille frame with fabric mesh cover |
| Cabinet Construction |
MDF with internal bracing for resonance-free performance at highest drive levels |
| Feet |
Screw-in Iso-elastomer feet reduce noise and improve stability |
| Dimensions with Grille |
18.3” H x 17.8” W x 19.5” D |
| Dimensions without Grille |
18.3” H x 17.8” W x 18.4” D |
| Shipped Dimensions |
23.2” H x 23.5” W x 28.0” D |
| Weight (Unboxed) |
102.1 lbs (46.3 kg) |
| Weight (Shipped) |
120.7 lbs (54.8 kg) |
| Driver Type |
Proprietary 15-inch long-throw with high-precision tuned overhung motor |
| Woofer Weight |
46.3 lb (21 kg), motor 38.4 lb (17.46 kg) |
| Excursion Specifications |
Xmax: 46.32mm, Xmech: 77.44mm |
| Voice Coil |
3” diameter, 6-layer bifilar flat edge wound aluminum wire windings |
| Dual Voice Coil Design |
Captures power from dual-mono amplifier outputs |
| Magnet Motor |
Oversized Y30 Ferrite magnet motor |
| Copper Sleeve |
Reduces gap inductance and lowers distortion |
| Lead Wires |
Dual 24-strand silver-plated copper-alloy and Nomex composite woven leads |
| Top Plate & T-Yoke |
Zinc-plated low carbon 1010 steel for magnetics and thermal capacity |
| Rubber Surround |
Injection-molded extreme-excursion parabolic NBR rubber surround |
| Dustcap & Cone |
Premium glass-fiber laminated dustcap and vented composite cone sub-structure |
| Basket |
High-density 15” Powder-coated cast aluminum, FEA optimized |
| Spring Terminals |
Nickel-plated high-tension spring terminals |
| Power Output |
2,000-watt continuous Class D, over 5,000 watts Peak Power |
| DSP |
295MHz Analog Devices Audio DSP, double precision 56bit filtering |
| Digital Audio Processing |
DACs with 120 dB Signal-to-Noise Ratio for flawless fidelity |
| Amplifier Design |
Dual-mono Class D amplifiers with 60A 200V MOSFETs |
| Power Supply |
Switch Mode Power Supply with Power Factor Correction (PFC) |
| Voltage Regulation |
Pre-regulates mains to solid 390V DC |
| Cooling Plate Design |
Convective cooling pulls cool air through amplifier components |
| Connectivity |
RCA, Balanced XLR, USB, Auto/On Trigger, IR input |
| Standby Power |
Green 0.5-watt low power consumption |
| Certifications |
RoHS compliant, lead-free, worldwide safety certifications |
