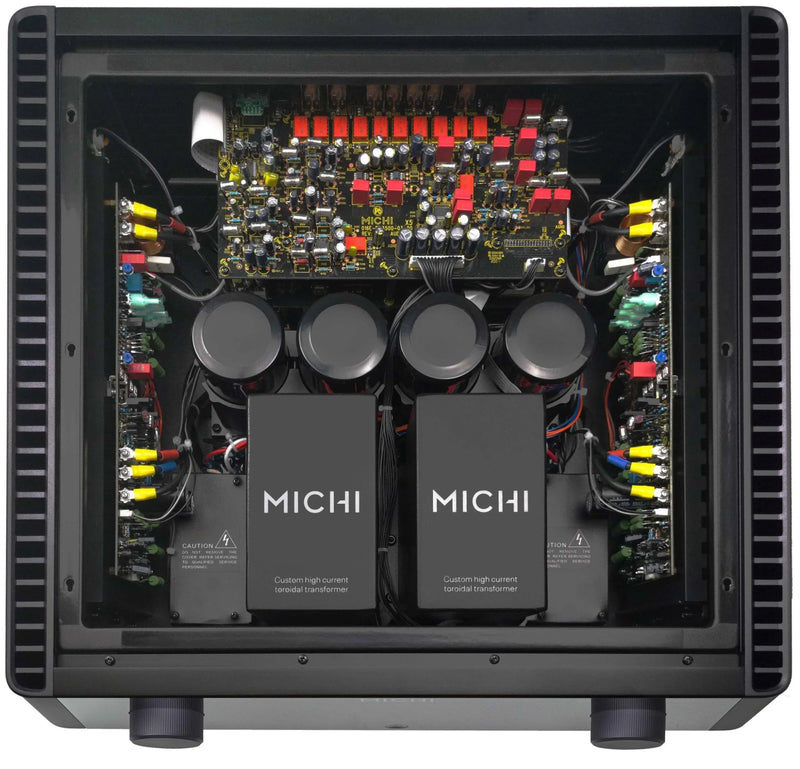

The Michi X5 Series 2 is a Class AB integrated amplifier rated at 350 watts per channel into 8 ohms and 600 watts per channel into 4 ohms. Its linear power supply is built around two large in-house manufactured, shielded, low-noise toroidal transformers, one per channel, which is why the amplifier weighs 43.8 kg and why it holds its output when the load impedance halves.
An ESS SABRE 32-bit 8-channel DAC handles conversion for the coaxial, optical and PC-USB inputs, the latter supporting PCM to 32-bit/384 kHz, Quad DSD at 11.2 MHz and full MQA hardware decoding. Analogue inputs cover RCA and balanced XLR, and the onboard phono stage is switchable between moving magnet and moving coil. A damping factor of 350 gives the output stage authority over difficult loudspeakers.
Key Features
- 600 watts per channel Class AB into 4 ohms
- Dual shielded in-house manufactured toroidal transformers
- ESS SABRE 32-bit 8-channel digital to analogue converter
- Full MQA hardware decoding up to 24-bit/384 kHz
- PC-USB supporting Quad DSD at 11.2 MHz
- Switchable moving magnet and moving coil phono stage
- Balanced XLR and unbalanced RCA analogue inputs
- aptX HD and AAC wireless Bluetooth streaming
- Damping factor of 350 across the audio band
- Certified Roon Tested for reliable software integration
Warranty
This product comes with a 2-year manufacturer warranty.
Why Consider the Michi X5 Series 2
The X5 Series 2 exists for systems that would otherwise need a preamplifier, a large power amplifier, a DAC and a phono stage. Its dual-transformer supply is the part that matters in use: each channel draws from its own reserve, so heavy bass in one channel does not modulate the other. The moving coil phono input is rare at any price in an integrated amplifier and removes the need for an outboard step-up or dedicated phono stage.
Ideal For
- Large rooms with power-hungry floorstanding loudspeakers
- Vinyl systems using moving coil cartridges
- Listeners consolidating four separate components into one
- High-resolution digital libraries including MQA and DSD
What's in the Box
- Michi X5 Series 2 Integrated Amplifier
- Michi remote control
- Power cable
- Owner's manual
Technical Specifications
| Amplifier Performance |
| Power Output (FTC) |
390 W per channel, 8 ohms |
| Maximum Power Output |
600 W per channel, 4 ohms |
| Continuous Power Output |
350 W per channel, 8 ohms |
| Total Harmonic Distortion |
Less than 0.009% |
| Intermodulation Distortion |
Less than 0.03% (60 Hz:7 kHz, 4:1) |
| Damping Factor |
350 (20 Hz - 20 kHz, 8 ohms) |
| Channel Separation |
Greater than 65 dB |
| Tone Controls |
±10 dB at 100 Hz / 10 kHz |
| Frequency Response |
| Line Level Inputs |
10 Hz - 100 kHz (+0 dB, -0.6 dB) |
| Digital Inputs |
20 Hz - 20 kHz (0 ±0.4 dB) |
| Phono Input |
20 Hz - 20 kHz (+0 dB, -0.2 dB) |
| Signal to Noise Ratio (A Weighted) |
| Line Level Inputs |
102 dB |
| Digital Inputs |
102 dB |
| Phono Input |
80 dB |
| Input Sensitivity and Impedance |
| Input Sensitivity, RCA |
380 mV |
| Input Sensitivity, XLR |
580 mV |
| Input Sensitivity, Phono MM |
5.7 mV |
| Input Sensitivity, Phono MC |
570 µV |
| Input Impedance, RCA |
100 kilohms |
| Input Impedance, XLR |
100 kilohms |
| Input Impedance, Digital |
75 ohms |
| Input Impedance, Phono MM |
47 kilohms |
| Input Impedance, Phono MC |
100 ohms |
| Input Overload, RCA |
12.5 V |
| Input Overload, XLR |
12.5 V |
| Input Overload, Phono MM |
197 mV |
| Input Overload, Phono MC |
19 mV |
| Digital Section |
| Digital to Analogue Converter |
ESS SABRE 32-bit 8-channel |
| Coaxial / Optical Inputs |
SPDIF LPCM up to 24-bit/192 kHz |
| PC-USB |
Class 1 up to 24-bit/96 kHz, Class 2 up to 32-bit/384 kHz |
| MQA and DSD Support |
MQA, DSD and DoP supported |
| Bluetooth |
aptX HD and AAC |
| Roon |
Roon Tested |
| Outputs |
| Preout Level |
1 V |
| Output Impedance |
470 ohms |
| General |
| Dimensions (W x H x D) |
485 x 195 x 452 mm |
| Front Panel Height |
177 mm |
| Power Requirements |
230 V, 50 Hz |
| Power Consumption |
850 W |
| Standby Power Consumption |
Less than 0.5 W |
| Net Weight |
43.8 kg |
| BTU Rating |
2194 BTU/h |
